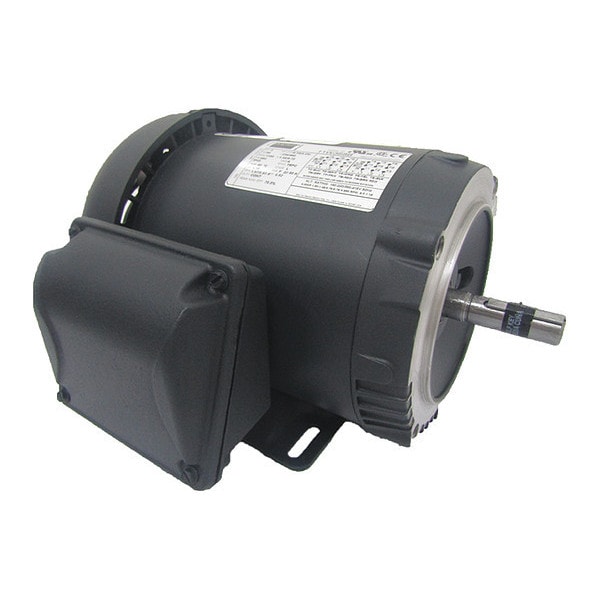

Three-Phase General Purpose Motor, 1/3 HP, 56C Frame, 230/460V AC Voltage, 1,140 Nameplate RPM

  • Mfr # 11W368
  • Zoro # G4099995
product price:
$
305.99
/ea
Free Shipping & Returns

Key Features

HP
1/3
Nameplate RPM
1,140
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
1.5/0.70 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
11W368
Zoro #
G4099995
UPC #
190735111284
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 1/4 in
Overall Length
12 1/8 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
5/8 in
Bolt Circle Diameter
5 7/8 in
Body Diameter
6.45 in
Frame Size
56C
Wire Rope Length
12 1/8 in
Length
12 1/8 in

Details

Item
General Purpose Motor
HP
1/3
Nameplate RPM
1,140
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
1.5/0.70 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
70 %
Standards
CE, CSA, UL
Motor Thermal Protection
None
Footnotes
2,10
NEMA Design
B
Duty Cycle
Continuous
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Weight
10 31/32 kg
Variable Torque Rating
10:1
Product Type
General Purpose Motor
Motor Enclosure Type
Totally Enclosed Fan Cooled
Inverter Rating
Inverter Rated
Number of Speeds
1
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Shaft Design
Keyed
Bearing Type
Ball
Bearing Lubrication Type
Permanently Lubricated
Bearing Protection Type
Shaft Slingers
Application
General Purpose
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 60 Hz
1.15
Includes
Shaft Key
NEMA Design Class
B
Efficiency Rating
NEMA Standard Efficiency
Usable @ 200V
Not Usable at 200V
Insulation Class
F
Full Load Current @ 60 Hz
1.45/0.723 A

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/3 HP, Nameplate RPM 1,140, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.5/0.70 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 70 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
