Shop DAYTON

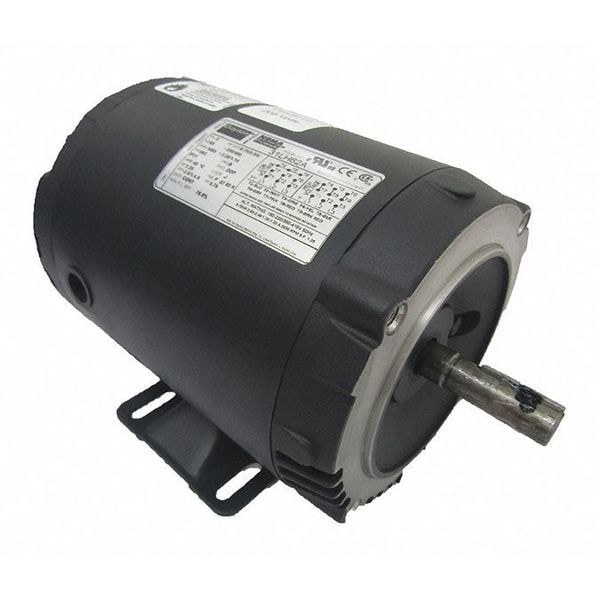

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 3485 Nameplate RPM

  • Mfr # 31LH62

  • Zoro # G9096367

product price:  $291.99
/ea
Free Shipping & Returns

Key Features

HP
3/4
Nameplate RPM
3485
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
2.3/1.1 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
31LH62
Zoro #
G9096367
UPC #
190735255292
Country of Origin
Mexico

Dimensions

Length Less Shaft
6 15/16 in
Overall Length
10 11/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Bolt Circle Diameter
5 7/8 in
Frame Size
56C
Shaft Diameter
5/8 in
Body Diameter
6.45 in

Details

Item
General Purpose Motor
HP
3/4
Nameplate RPM
3485
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
2.3/1.1 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
75.3 %
Standards
CE, CSA, UL
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Includes
Shaft Key
Green Certification or Other Recognition
NEMA Premium(R) Rated
Inverter Rated
Yes
Footnotes
15,16
Motor Thermal Protection
None
Capacitor Required
No
Duty Cycle
Continuous
Motor Enclosure Type
Open Drip Proof
NEMA Design Class
B
Application
General Purpose
Inverter Rating
Inverter Rated
Full Load Current @ 60 Hz
2.3 / 1.1 A
Manufacturers Warranty
1 yr
Conduit Box Location
Interior
Insulation Class
F
Bearing Protection Type
No Protection
Usable @ 208V
Not Usable at 208V
Bearing Lubrication Type
Permanently Lubricated
Bearing Type
Ball
Usable @ 200V
Not Usable at 200V
Number of Speeds
1
Variable Torque Rating
10:1
Ambient Temperature - Maximum
40 Degrees C
Product Type
General Purpose Motor
Nameplate Service Factor @ 60 Hz
1.15
Efficiency Rating
NEMA Premium Efficiency
Shaft Design
Keyed
Frequency
60 Hz
Frame Material
Steel
Weight
8 7/8 kg

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3/4 HP, Nameplate RPM 3485, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.3/1.1 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 75.3 Percent, Continuous Duty, 3001-3600, CE, CSA, UL, Includes Shaft Key
