Shop DAYTON

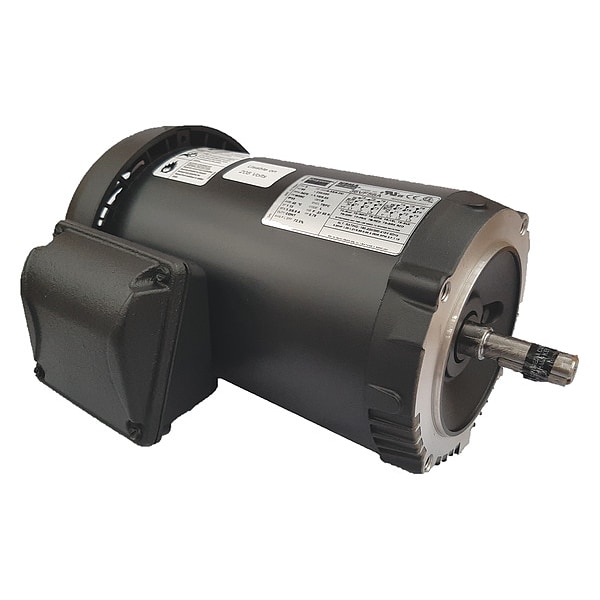

Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 1160 Nameplate RPM

  • Mfr # 36VF55

  • Zoro # G1860437

product price:
$
291.99
/ea
Free Shipping & Returns

Key Features

Nameplate RPM
1160
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
1.0/0.55 A
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36VF55
Zoro #
G1860437
UPC #
190735275870
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 11/16 in
Overall Length
11 9/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Frame Size
56C
Bolt Circle Diameter
5 7/8 in
Body Diameter
6.45 in
Wire Rope Length
11 9/16 in
Shaft Diameter
5/8 in

Details

Item
General Purpose Motor
HP
1/4
Nameplate RPM
1160
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
1.0/0.55 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
68 %
Standards
CE, CSA, UL
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Motor Thermal Protection
None
Inverter Rated
Yes
Footnotes
2, 15, 57
Green Certification or Other Recognition
NEMA Premium Rated
Capacitor Required
No
Duty Cycle
Continuous
Conduit Box Location
Exterior
Frame Material
Steel
Application
General Purpose
Bearing Type
Ball
Usable @ 200V
Not Usable at 200V
NEMA Design Class
B
Usable @ 208V
Not Usable at 208V
Includes
Shaft Key
Insulation Class
F
Bearing Lubrication Type
Permanently Lubricated
Weight
9 9/32 kg
Number of Speeds
1
Manufacturers Warranty
1 yr
Frequency
60 Hz
Full Load Current @ 60 Hz
1.09/0.545 A
Efficiency Rating
NEMA Standard Efficiency
Product Type
General Purpose Motor
Shaft Design
Keyed
Constant Torque Rating
10:1
Nameplate Service Factor @ 60 Hz
1.15
Inverter Rating
Inverter Rated
Ambient Temperature - Maximum
40 Degrees C
Bearing Protection Type
Shaft Slingers
Variable Torque Rating
10:1
Motor Enclosure Type
Totally Enclosed Fan Cooled
Mounting Position
Horizontal

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/4 HP, Nameplate RPM 1160, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.0/0.55 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 68 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
