Shop DAYTON

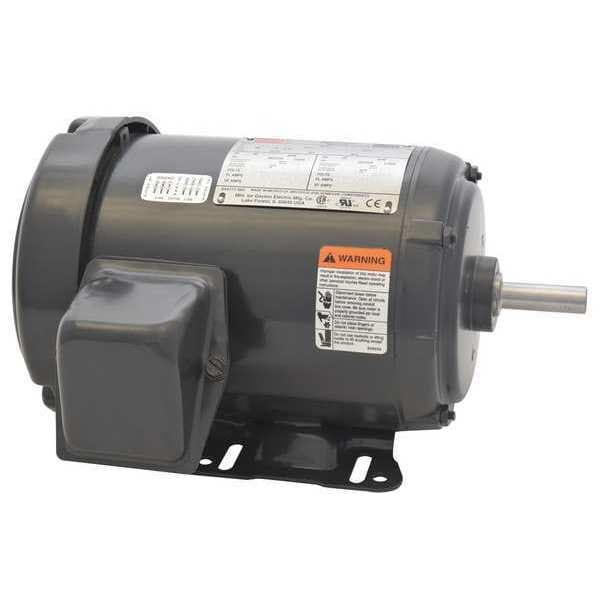

Three-Phase General Purpose Motor, 1 1/2 HP, 56H Frame, 208-230/460V AC Voltage, 3465 Nameplate RPM

  • Mfr # 48ZJ86

  • Zoro # G6298400

product price:
$
485.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2
Nameplate RPM
3465
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3.9/1.9 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
48ZJ86
Zoro #
G6298400
UPC #
190735905166
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 11/16 in
Overall Length
12 5/8 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Body Diameter
7.31 in
Shaft Diameter
5/8 in
Frame Size
56H
Wire Rope Length
12 5/8 in

Details

Item
General Purpose Motor
HP
1 1/2
Nameplate RPM
3465
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3.9/1.9 A
Frame
56H
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60/50 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CSA (258501), UL (E47479)
CC Number
CC060A
Footnotes
2, 10, 15
Includes
Shaft Key
Motor Thermal Protection
None
Inverter Rated
Yes
Duty Cycle
Continuous
Manufacturers Warranty
1 yr
Bearing Lubrication Type
Permanently Lubricated
Number of Speeds
1
Nameplate RPM @ 50 Hz
2,870
Frequency
60/50 Hz
Inverter Rating
Inverter Rated
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Service Factor @ 60 Hz
1.25
Product Type
General Purpose Motor
Application
General Purpose
Conduit Box Location
Exterior
Insulation Class
F
Efficiency Rating
NEMA Premium Efficiency
Nameplate Service Factor @ 50 Hz
1
Weight
30 lb
Full Load Current @ 60 Hz
5.0/2.5 A
Bearing Type
Ball
Mounting Position
All Angle
Full Load Current @ 50 Hz
3.0/6.1
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Nameplate Voltage @ 50 Hz
190/380V AC
Frame Material
Steel
NEMA Design Class
B
Usable @ 208V
Usable at 208V
Nameplate Horsepower @ 50 Hz
2 hp
Usable @ 200V
Usable at 200V

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3465, Frame 56H, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 3.9/1.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600
