Shop DAYTON

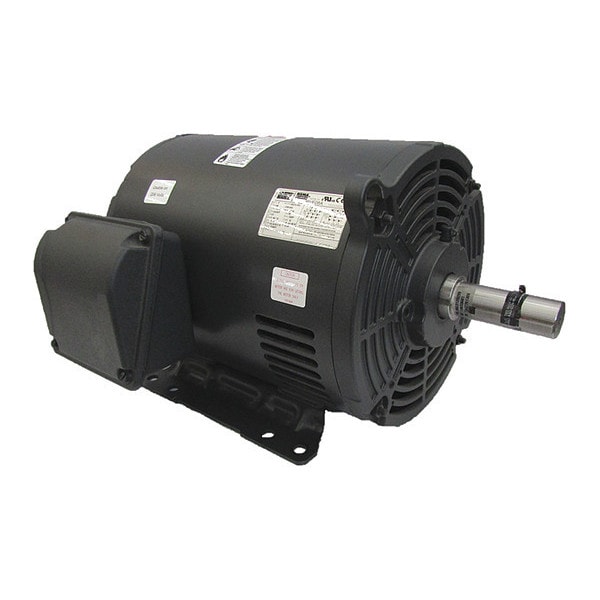

Three-Phase General Purpose Motor, 20 HP, 254/6T Frame, 230/460V AC Voltage, 3530 Nameplate RPM

  • Mfr # 36VF08

  • Zoro # G1860595

product price:  $1,487.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details

Key Features

HP
20
Nameplate RPM
3530
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
44.7/22.3 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36VF08
Zoro #
G1860595
UPC #
190735275412
Country of Origin
Mexico

Dimensions

Length Less Shaft
16 1/2 in
Overall Length
20 1/2 in
Shaft Dia.
1 5/8 in
Shaft Length
4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 5/8 in
Frame Size
254-6T

Details

Item
General Purpose Motor
HP
20
Nameplate RPM
3530
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
44.7/22.3 A
Frame
254/6T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
91 %
Standards
CSA, UL
CC Number
CC029A
Motor Thermal Protection
None
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Footnotes
2,15,56
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Includes
Conduit Box
Duty Cycle
Continuous
Capacitor Required
No
Application
General Purpose
Frequency
60 Hz
Shaft Design
Keyed
Mounting Position
Horizontal
Inverter Rating
Inverter Rated
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.15
Nameplate RPM @ 50 Hz
3,490 RPM
Bearing Type
Ball
Manufacturers Warranty
1 yr
Full Load Current @ 60 Hz
44.7/22.3 A
Product Type
General Purpose Motor
Nameplate Voltage @ 50 Hz
380V AC
Frame Material
Steel
Efficiency Rating
NEMA Premium Efficiency
Insulation Class
F
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 20 HP, Nameplate RPM 3530, Frame 254/6T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 44.7/22.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 3001-3600, CSA, UL, Includes Conduit Box
