Shop DAYTON

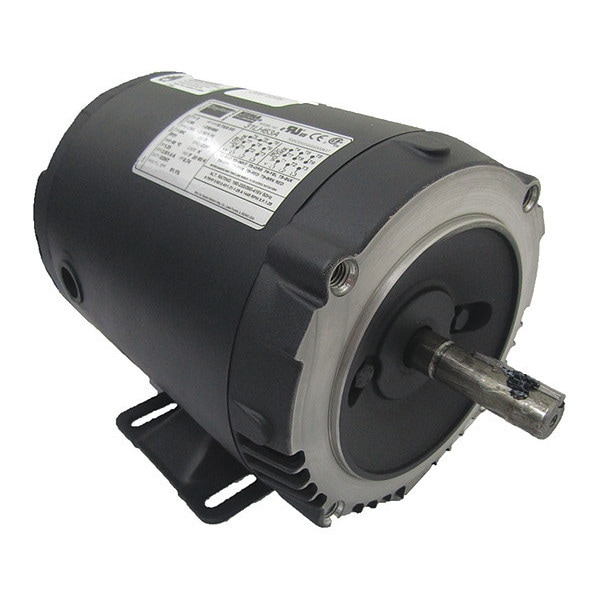

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 1760 Nameplate RPM

  • Mfr # 31LH63

  • Zoro # G9096376

product price:  $291.99
/ea
Free Shipping & Returns

Key Features

HP
3/4
Nameplate RPM
1760
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
2.3/1.2 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
31LH63
Zoro #
G9096376
UPC #
190735255308
Country of Origin
Mexico

Dimensions

Length Less Shaft
8 1/2 in
Overall Length
11 1/8 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
5/8 in
Bolt Circle Diameter
5 7/8 in
Frame Size
56C
Body Diameter
6.45 in

Details

Item
General Purpose Motor
HP
3/4
Nameplate RPM
1760
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
2.3/1.2 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
81.1 %
Standards
CE, CSA, UL
Green Certification or Other Recognition
NEMA Premium(R) Rated
Includes
Shaft Key
Footnotes
15,16
Inverter Rated
Yes
Motor Thermal Protection
None
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Capacitor Required
No
Duty Cycle
Continuous
Frame Material
Steel
Variable Torque Rating
1000:1
Weight
11 1/8 kg
Bearing Lubrication Type
Permanently Lubricated
Application
General Purpose
Shaft Design
Keyed
Manufacturers Warranty
1 yr
Motor Enclosure Type
Open Drip Proof
Ambient Temperature - Maximum
40 Degrees C
Conduit Box Location
Interior
Number of Speeds
1
Product Type
General Purpose Motor
Usable @ 200V
Not Usable at 200V
Bearing Protection Type
No Protection
Frequency
60 Hz
Usable @ 208V
Not Usable at 208V
Inverter Rating
Inverter Rated
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.25
Bearing Type
Ball
Efficiency Rating
NEMA Premium Efficiency
Full Load Current @ 60 Hz
2.3/1.15 A

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3/4 HP, Nameplate RPM 1760, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.3/1.2 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 81.1 Percent, Continuous Duty, 1701-1800, CE, CSA, UL, Includes Shaft Key
