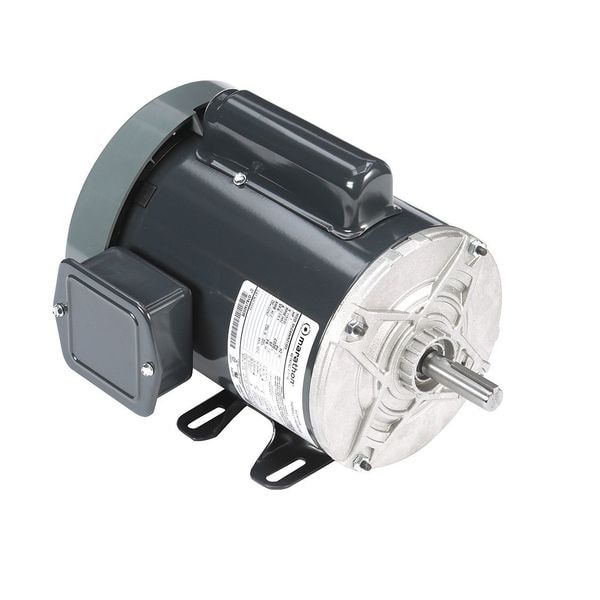

Capacitor-Start General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56 Frame

  • Mfr # 5KC49NN2130X

  • Zoro # G5696521

product price:  $381.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1 hp
RPM Range
3,001-3,600
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5KC49NN2130X
Zoro #
G5696521
UPC #
-
Country of Origin
Multiple

Dimensions

Shaft Length
1 7/8 in
Overall Length
12 7/16 in
Length Less Shaft
10 9/16 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
5/8 in
Shaft Diameter
5/8 in
Frame Size
56

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1 hp
RPM Range
3,001-3,600
Voltage
115/230V AC
Frame
56
Motor Thermal Protection
Auto
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application
General Purpose
Nameplate RPM
3,450 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified, UL Listed
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Duty
Continuous
Inverter Rated
Not Inverter Rated
Motor Bearings
Ball
Ins. Class
B
Frame Material
Steel
Full Load Amps
13.0/6.5 A
RPM Group
3001-3600
Phase
Single
Nominal Efficiency
68.5 %
Duty Cycle
Continuous
Weight
29 lb
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Capacitor Required
No
Inverter Rating
Not Inverter Rated
Mounting Position
All Angle
Number of Speeds
1
Full Load Current @ 60 Hz
13.0/6.5 A
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Efficiency Rating
Standard Efficiency (IE1)
Application
General Purpose
Manufacturers Warranty
1 yr
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60 Hz
Product Type
General Purpose Motor
Shaft Design
Keyed
Insulation Class
B

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 13.0/6.5 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
