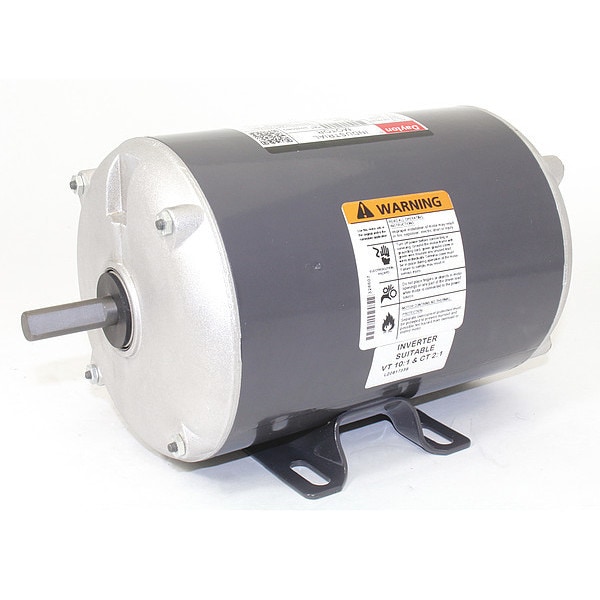

Three-Phase General Purpose Motor, 1/3 HP, 48 Frame, 208-230/460V AC Voltage, 1,725 Nameplate RPM

  • Mfr # 3N350

  • Zoro # G2301013

product price:  $239.99
/ea
Free Shipping & Returns

Key Features

HP
1/3
Nameplate RPM
1,725
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.3-1.3/0.70 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3N350
Zoro #
G2301013
UPC #
190735292617
Country of Origin
Multiple

Dimensions

Length Less Shaft
9 7/16 in
Overall Length
11 11/16 in
Shaft Dia.
1/2 in
Shaft Length
1 1/2 in
Manufacturers Warranty Length
1 yr
Body Diameter
7.31 in
Shaft Diameter
1/2 in
Frame Size
48
Wire Rope Length
11 11/16 in

Details

Item
General Purpose Motor
HP
1/3
Nameplate RPM
1,725
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.3-1.3/0.70 A
Frame
48
Motor Bearings
Ball
Motor Service Factor
1
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Non-Ventilated
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Flat
Nominal Efficiency
72 %
Standards
CSA Certified (191252), UL Recognized (E47479)
Motor Thermal Protection
None
Footnotes
5,10
Inverter Rated
Yes
Duty Cycle
Continuous
Insulation Class
F
Manufacturers Warranty
1 yr
Application
General Purpose
Nameplate RPM @ 50 Hz
2,875
Shaft Design
Keyed
Motor Enclosure Type
Totally Enclosed Fan Cooled
Weight
30 lb
Efficiency Rating
NEMA Standard Efficiency
Includes
Conduit Box
Frequency
60/50 Hz
Inverter Rating
Inverter Rated
Usable @ 208V
Usable at 208V
Full Load Current @ 60 Hz
1.7-1.5/0.80 A
Ambient Temperature - Maximum
40 Degrees C
Bearing Lubrication Type
Permanently Lubricated
Bearing Type
Ball
Nameplate Service Factor @ 50 Hz
1
Nameplate Voltage @ 50 Hz
190/380V AC
Nameplate Horsepower @ 50 Hz
1/2 hp
Nameplate Service Factor @ 60 Hz
1.25
NEMA Design Class
B
Full Load Current @ 50 Hz
0.9/1.8
Conduit Box Location
Exterior
Product Type
General Purpose Motor
Number of Speeds
1
Mounting Position
All Angle
Usable @ 200V
Usable at 200V

Description

General Purpose Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 1/3 HP, Nameplate RPM 1,725, Frame 48, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.3-1.3/0.70 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 72 Percent, Continuous Duty, 1701-1800
