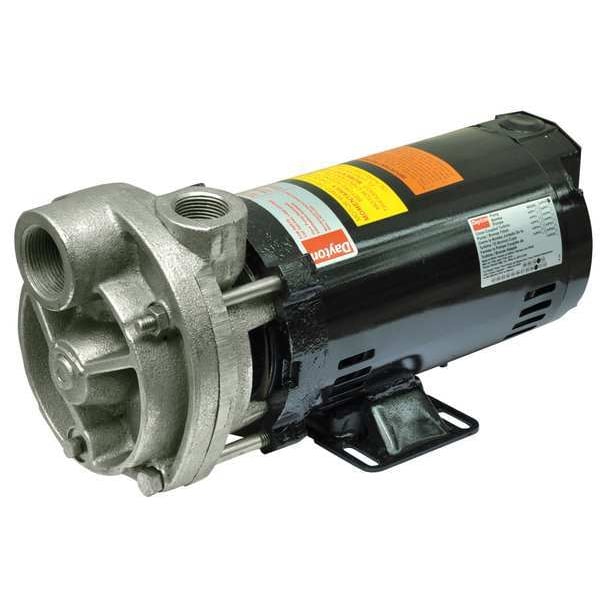

Dayton Turbine Pump, 3/4 HP, 3 Ph, 2.5/1.2 Amp 4JPF6 - main

Turbine Pump, 3/4 HP, 3 Ph, 2.5/1.2 Amp

  • Mfr # 4JPF6

  • Zoro # G1631813

product price: $820.99
/ea
Free Shipping & Returns

Key Features

HP
3/4 hp
Voltage
208-230/460
Wetted Materials
Bronze, Carbon, Cast Iron,Buna-N, Ceramic and 316 Stainless Steel
Seal Material
316 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
120 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4JPF6
Zoro #
G1631813
UPC #
190735327104
Country of Origin
India

Dimensions

Height
7 5/8 in
Width
6 3/4 in
Overall Height
7.63 in
Overall Width
6.75 in
Compatible Discharge Pipe Size
1 in
Compatible Intake Pipe Size
1 1/4 in

Details

HP
3/4 hp
Voltage
208-230/460
Wetted Materials
Bronze, Carbon, Cast Iron,Buna-N, Ceramic and 316 Stainless Steel
Seal Material
316 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
120 psi
Amps
2.7-2.5/1.2
GPM @ 80 PSI
5.5
GPM @ 60 PSI
6.1
Hz
60
GPM @ 75 PSI
5.7
Frame
56J
Phase
Three
Inlet Pressure
90 psi
Duty
Continuous
GPM @ 100 PSI
4.8
Includes
OIPM
Agency Compliance
Motor is UL Recognized
Outlet
1 in
Housing Material
Cast Iron with nickel plating
GPM @ 10 PSI
7.6
Best Efficiency GPM @ Head
5.7 @ 75 ft
GPM @ 50 PSI
6.4
GPM @ 40 PSI
6.8
Motor Enclosure
Open Dripproof (ODP)
Motor RPM
3,450 RPM
Inlet
1-1/4 in
Bearing Type
Ball
GPM @ 90 PSI
5.2
Item
Turbine Pump
Motor Type
3-Phase
GPM @ 30 PSI
7.1
Inlet (In.)
1-1/4
Impeller Type
Open
Max. Case Pressure
200 psi
GPM @ 20 PSI
7.3
Impeller Material
Bronze
Max. Specific Gravity
1
Features
Designed to Handle Liquids with Entrained Air
Standards
UL Listed
Frequency
60 Hz
Flow Rate @ 30 psi
7.1 gpm
Discharge Type
NPT
Best Efficiency Head
75 ft
NPSHr
90 psi
Flow Rate @ 50 psi
6.4 gpm
Specific Gravity (Maximum)
1
Nameplate Voltage
208-230/460V AC
Flow Rate @ 120 psi
0 gpm
Flow Rate @ 80 psi
5.5 gpm
Maximum RPM
3,450 RPM
Operation
Manual
Minimum Flow Rate
4.8 gpm
Shut Off Pressure (Maximum)
120 psi
Duty Cycle
Continuous
Intake Type
NPT
Flow Rate @ 100 psi
4.8 gpm
Seal Type
Mechanical Seal
Flow Rate @ 60 psi
6.1 gpm
Pump Housing Material
Cast Iron
Flow Rate @ 40 psi
6.8 gpm
Flow Rate @ 10 psi
7.6 gpm
Wetted Material
316 Stainless Steel, Bronze, Buna-N, Carbon, Cast Iron, Ceramic
Maximum Flow Rate
7.6 gpm
Case Pressure (Maximum)
200 psi
Flow Rate @ 20 psi
7.3 gpm
Horsepower
3/4 hp
Motor Frame Designation
56J
Flow Rate @ 90 psi
5.2 gpm
Minimum Media Temperature
-20 Degrees F
Priming
Self-Priming
Impeller Design
Open

Description

Turbine Pump, Phase Three, Pump Housing Material Cast Iron, Motor Enclosure Open Dripproof, Horsepower 3/4 hp, Nameplate Voltage 208-230/460V AC, Shut Off Pressure (Maximum) 120 psi, Maximum Flow Rate 7.6 gpm, Flow Rate @ 10 psi 7.6 gpm, Flow Rate @ 20 psi 7.3 gpm, Flow Rate @ 30 psi 7.1 gpm, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Type 3-Phase, Best Efficiency Head 75 ft, Case Pressure (Maximum) 200 psi, Duty Cycle Continuous
