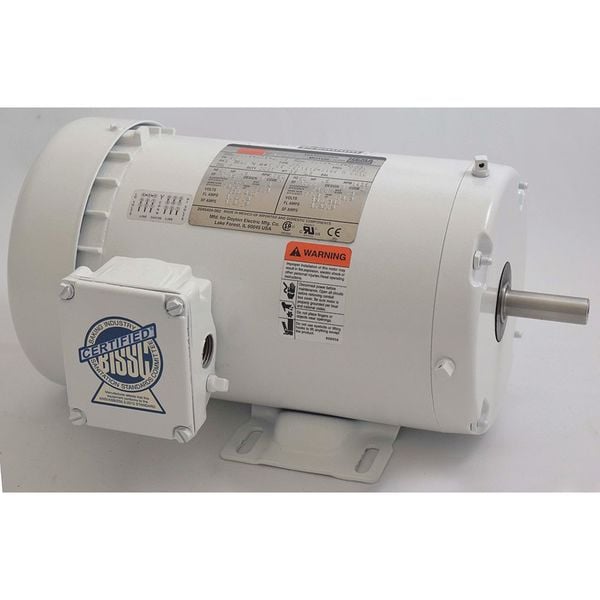

Washdown Motor, 3 Ph, TEFC, 1/2 HP, 1725 rpm

DAYTON| Zoro #: G0802356| Mfr #: 2DAK7

$291.66 /ea

This item ships free. DetailsStandard ground shipping
This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0802356 Mfr #: 2DAK7
Motor Shaft Rotation: CW/CCWItem: Washdown Motor
Voltage Compatibility: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460Conduit Box: Cast Aluminum with Buna N Gasketed Cover
Max. Ambient Temp.: 40 Degrees CMotor Mounting Position: All Angle
Motor Enclosure Design: Totally Enclosed Fan-CooledStandards: UL Recognized (E47479), CSA Certified (LR225293), USDA Approved
Motor Bearings: BallDuty: Continuous
Shaft Dia.: 5/8"Shaft Material: 303 Stainless Steel
Nameplate RPM: 1725Motor Design: 3-Phase
Motor Thermal Protection: NoneShaft Length: 1-7/8"
Endshields: Cast AluminumLength Less Shaft: 11-1/2"
Voltage: 230/460Motor Service Factor: 1.15
Phase: 3Inverter Rated: Yes
Motor Mounting Type: Rigid BaseNEMA Design: B
Ins. Class: FNominal Efficiency: 78.5%
Body Dia.: 6-1/2"Overall Length: 10-3/8"
Hz: 60Motor Application: Washdown
Drain Plugs: (4) Each End, (2) In Conduit BoxHP: 1/2
Frame: 56Frame Material: Epoxy Coated
Motor Shaft Design: KeyedCountry of Origin (subject to change): United States

Product Description

Washdown Motor, 3-Phase, 1/2 HP, 1725 Nameplate RPM, Voltage 208-230/460, Phase 3, 56 Frame, Totally Enclosed Fan-Cooled, Full Load Amps 1.9-2.0/1.0, 60 Hz, Thermal Protection None, F Insulation Class, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 10-3/8 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Body Dia. 6-1/2 In., Length Less Shaft 8-3/8 In., Continuous Duty, Frame Material Epoxy Coated
