  11. Washdown Motor, 3 Ph, TEFC, 2 HP, 1745 rpm

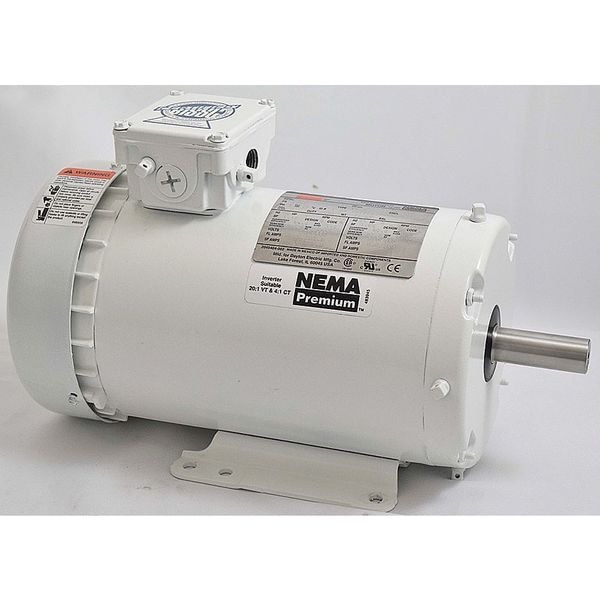

Dayton Washdown Motor, 3 Ph, TEFC, 2 HP, 1745 rpm 5XAT6 - main

Washdown Motor, 3 Ph, TEFC, 2 HP, 1745 rpm

  • Mfr # 5XAT6

  • Zoro # G0280865

product price: $1,074.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5XAT6
Zoro #
G0280865
UPC #
190735355480
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8 in
Overall Length
14 5/16 in
Length Less Shaft
12 in
Shaft Length
2 1/4 in
Body Dia.
6.94 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
145T
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Includes
Top Mounted Conduit Box
Inverter Rated
Inverter Rated
Endshields
Cast Aluminum
NEMA Design
B
Ins. Class
F
Duty
Continuous
CC Number
CC030A
Motor Mounting Position
Horizontal
Frame Material
Epoxy Coated
Conduit Box
Cast Aluminum with Buna N Gasketed Cover
Drain Plugs
(2) in Conduit Box, (4) Each End
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
Rigid Base
Full Load Amps
5.7/2.8 A
Nameplate RPM
1,750 RPM
Motor Bearings
Ball
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1.15
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Shaft Material
303
Motor Application
General Purpose
Footnotes
8, 11
Nominal Efficiency
86.5 %
Hz
60/50 Hz
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Endshield Material
Aluminum
Duty Cycle
Continuous
Finish
Epoxy-Coated

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,750 RPM, Voltage 230/460V AC, Full Load Amps 5.7/2.8 A, 145T Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
