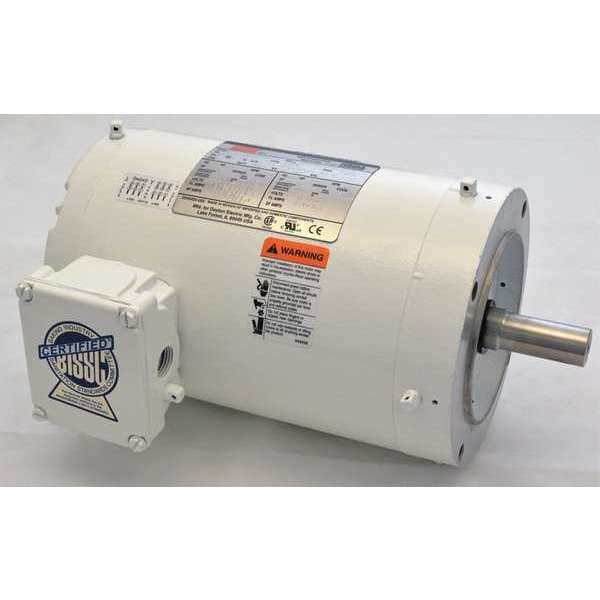

Washdown Motor, 3 Ph, TENV, 1 HP, 1725 rpm

DAYTON| Zoro #: G1869567| Mfr #: 1TTB7

$692.64 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1869567 Mfr #: 1TTB7
Motor Shaft Design: KeyedMotor Service Factor: 1.15
Motor Shaft Rotation: CW/CCWMotor Bearings: Ball
Item: Washdown MotorPhase: 3
Ins. Class: FInverter Rated: Yes
Max. Ambient Temp.: 40 Degrees CMotor Application: Washdown
Motor Enclosure Design: Totally Enclosed NonventilatedHP: 1
Motor Thermal Protection: NoneMotor Design: 3-Phase
Duty: ContinuousDrain Plugs: (4) Each End, (2) In Conduit Box
Standards: UL Recognized (E47479), CSA Certified (LR63596), USDA ApprovedVoltage Compatibility: 460, 230/460, 220-230/460
Motor Mounting Type: FaceOverall Length: 11-5/8"
Length Less Shaft: 9-5/8"Nominal Efficiency: 80.0%
Shaft Dia.: 7/8"Hz: 60
Frame: 143TCConduit Box: Cast Oversized Gasketed
NEMA Design: BNameplate RPM: 1750
Full Load Amps: 3.3-3.2/1.6Body Dia.: 6-1/2"
Frame Material: Epoxy CoatedVoltage: 230/460
Shaft Material: 303 Stainless SteelMotor Mounting Position: All Angle
Shaft Length: 2"Country of Origin (subject to change): Mexico

Product Description

Washdown Motor, 3-Phase, 1 HP, 1725 Nameplate RPM, Voltage 208-230/460, Phase 3, 143TC Frame, Totally Enclosed Nonventilated, Full Load Amps 3.3-3.2/1.6, 60 Hz, Thermal Protection None, F Insulation Class, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 11-5/8 In., Shaft Dia. 7/8 In., Shaft Length 2 In., Body Dia. 6-1/2 In., Length Less Shaft 9-5/8 In., Continuous Duty, Frame Material Epoxy Coated
