  11. Washdown Motor, 3 Ph, TEFC, 3 HP, 1760 rpm

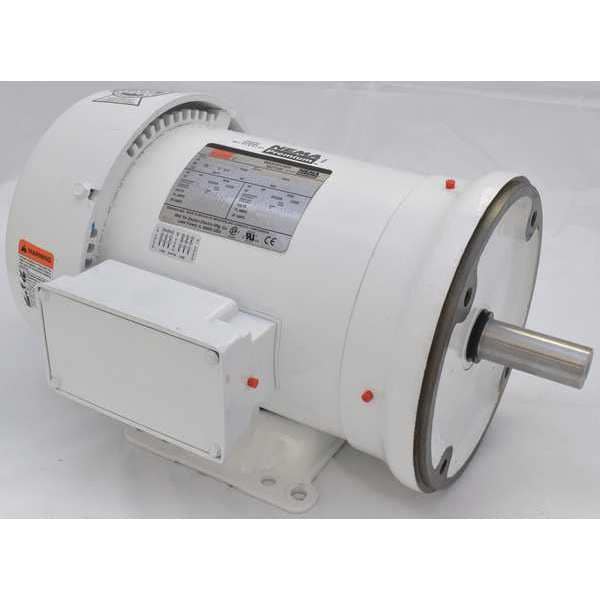

Dayton Washdown Motor, 3 Ph, TEFC, 3 HP, 1760 rpm 5XAU0 - main

Washdown Motor, 3 Ph, TEFC, 3 HP, 1760 rpm

  • Mfr # 5XAU0

  • Zoro # G0470592

product price: $1,567.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5XAU0
Zoro #
G0470592
UPC #
190735355527
Country of Origin
Mexico

Dimensions

Shaft Length
2 5/8 in
Body Dia.
8.38 in
Length Less Shaft
14 1/8 in
Shaft Dia.
1 1/8 in
Overall Length
14 1/2 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
182TC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Ins. Class
F
Hz
60/50 Hz
Full Load Amps
7.6/3.8 A
Duty
Continuous
Endshields
Cast Aluminum
Nominal Efficiency
89.5 %
Motor Service Factor
1.15
Inverter Rated
Inverter Rated
Standards
CSA Certified (LR225293), UL Recognized (E47479), USDA Approved
Frame Material
Epoxy Coated
Motor Shaft Design
Keyed
Motor Mounting Position
Horizontal
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
C-Face, Rigid Base
Motor Shaft Rotation
CW/CCW
Drain Plugs
(2) in Conduit Box, (3) Shaft End, (4) Lead End
NEMA Design
B
Shaft Material
303
CC Number
CC030A
Footnotes
8, 11
Motor Bearings
Ball
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Application
General Purpose
Conduit Box
Cast Aluminum with Buna-N Gasketed Cover
Nameplate RPM
1,765 RPM
Duty Cycle
Continuous
Endshield Material
Aluminum
Voltage @ 50Hz
190/380V AC
Finish
Epoxy-Coated

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,765 RPM, Voltage 230/460V AC, Full Load Amps 7.6/3.8 A, 182TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
