  11. Washdown Motor, 3 Ph, TEFC, 5 HP, 1760 rpm

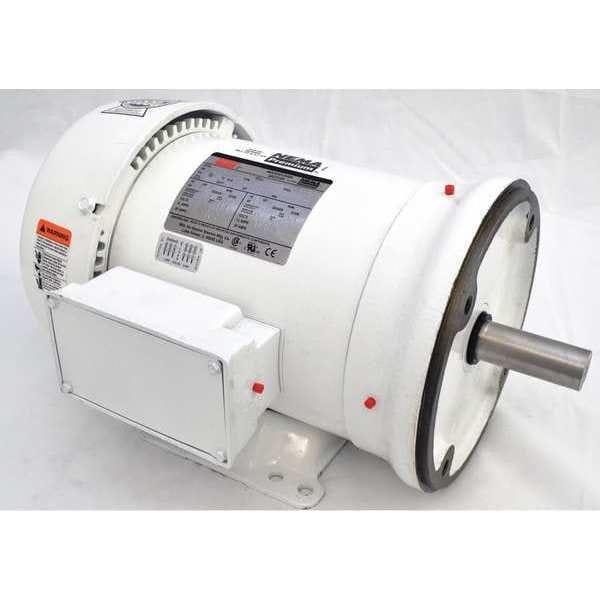

Dayton Washdown Motor, 3 Ph, TEFC, 5 HP, 1760 rpm 5XAU1 - main

Washdown Motor, 3 Ph, TEFC, 5 HP, 1760 rpm

  • Mfr # 5XAU1

  • Zoro # G0603757

product price: $1,698.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5XAU1
Zoro #
G0603757
UPC #
190735355534
Country of Origin
Mexico

Dimensions

Body Dia.
8.38 in
Length Less Shaft
14 1/8 in
Shaft Length
2 5/8 in
Overall Length
15 in
Shaft Dia.
1 1/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
184TC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
NEMA Design
B
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Standards
CSA Certified (LR225293), UL Recognized (E47479), USDA Approved
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Shaft Rotation
CW/CCW
Endshields
Cast Aluminum
Frame Material
Epoxy Coated
Hz
60/50 Hz
Footnotes
8, 11
Motor Application
General Purpose
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
89.5 %
Inverter Rated
Inverter Rated
Motor Bearings
Ball
Motor Mounting Type
C-Face, Rigid Base
Shaft Material
303
Drain Plugs
(2) in Conduit Box, (3) Shaft End, (4) Lead End
CC Number
CC030A
Full Load Amps
12.5/6.2 A
Motor Mounting Position
Horizontal
Nameplate RPM
1,755 RPM
Conduit Box
Cast Aluminum with Buna-N Gasketed Cover
Motor Shaft Design
Keyed
Duty
Continuous
Motor Service Factor
1.15
Endshield Material
Aluminum
Duty Cycle
Continuous
Finish
Epoxy-Coated
Voltage @ 50Hz
190/380V AC

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,755 RPM, Voltage 230/460V AC, Full Load Amps 12.5/6.2 A, 184TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
