  11. Washdown Motor, 3 Ph, TEFC, 2 HP, 3505 RPM

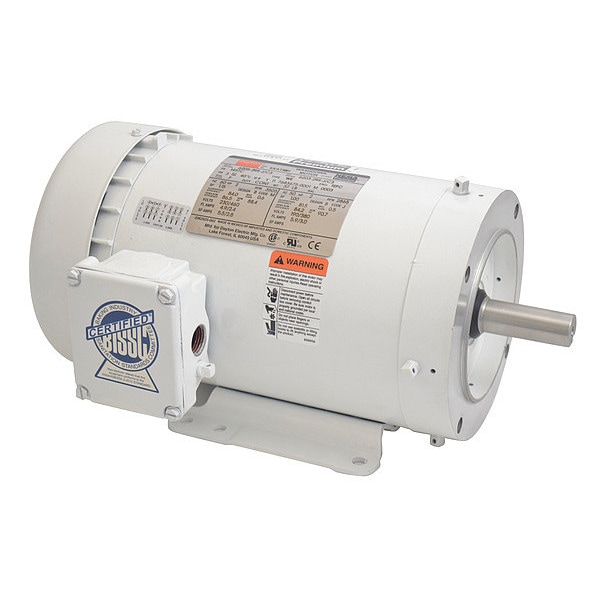

Dayton Washdown Motor, 3 Ph, TEFC, 2 HP, 3505 RPM 5XAT3BG - main

Washdown Motor, 3 Ph, TEFC, 2 HP, 3505 RPM

  • Mfr # 5XAT3BG

  • Zoro # G0781812

product price: $1,015.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
145TC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5XAT3BG
Zoro #
G0781812
UPC #
190735355459
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8 in
Overall Length
13 15/16 in
Body Dia.
6.63 in
Shaft Length
2 1/8 in
Length Less Shaft
11 13/16 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
145TC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Shaft Material
303
NEMA Design
B
Conduit Box
Cast Aluminum with Buna-N Gasketed Cover
CC Number
CC030A
Motor Shaft Design
Keyed
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
Ins. Class
F
Motor Mounting Type
C-Face, Rigid Base
Footnotes
2, 12
Nameplate RPM
3,505 RPM
Full Load Amps
4.9/2.4 A
Motor Mounting Position
Horizontal
Frame Material
Epoxy Coated
Motor Application
General Purpose
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Nominal Efficiency
86.5 %
Hz
60/50 Hz
Motor Service Factor
1.15
Endshields
Cast Aluminum
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Drain Plugs
(2) in Conduit Box, (4) Lead End, (4) Shaft End
Motor Shaft Rotation
CW/CCW
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Inverter Rated
Inverter Rated
Endshield Material
Aluminum
Voltage @ 50Hz
190/380V AC
Finish
Epoxy-Coated

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,505 RPM, Voltage 230/460V AC, Full Load Amps 4.9/2.4 A, 145TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel, Endshield Material Aluminum
