  11. Washdown Motor, 3 Ph, TEFC, 3 HP, 1760 rpm

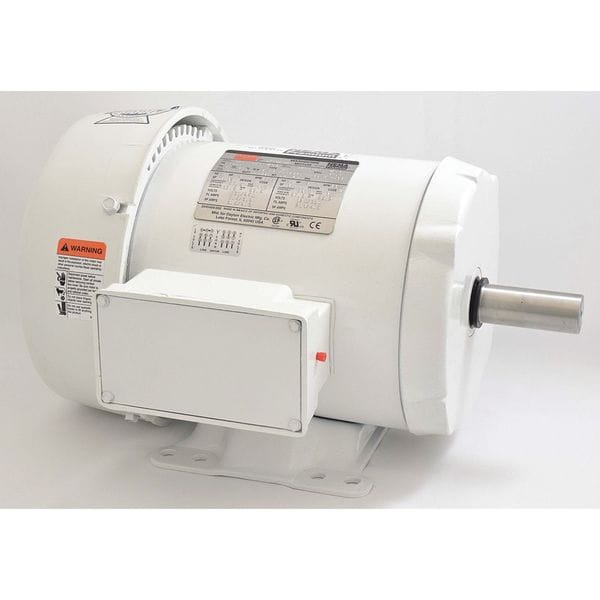

Dayton Washdown Motor, 3 Ph, TEFC, 3 HP, 1760 rpm 5XAU2 - main

Washdown Motor, 3 Ph, TEFC, 3 HP, 1760 rpm

  • Mfr # 5XAU2

  • Zoro # G3020683

product price: $1,684.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5XAU2
Zoro #
G3020683
UPC #
190735355541
Country of Origin
Mexico

Dimensions

Length Less Shaft
12 3/4 in
Shaft Dia.
1 1/8 in
Overall Length
15 3/4 in
Shaft Length
3 in
Body Dia.
9.63 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
182T
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Drain Plugs
(2) in Conduit Box, (4) Each End
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Frame Material
Epoxy Coated
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Duty
Continuous
Full Load Amps
7.6/3.8 A
Endshields
Cast Aluminum
Hz
60/50 Hz
Motor Shaft Rotation
CW/CCW
NEMA Design
B
Max. Ambient Temp.
40 Degrees C
CC Number
CC030A
Motor Service Factor
1.15
Footnotes
8, 11
Motor Bearings
Ball
Motor Shaft Design
Keyed
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Motor Mounting Type
Rigid Base
Includes
Side-Mounted Conduit Box
Motor Mounting Position
Horizontal
Inverter Rated
Inverter Rated
Nominal Efficiency
89.5 %
Nameplate RPM
1,765 RPM
Ins. Class
F
Conduit Box
Cast Aluminum with Buna N Gasketed Cover
Motor Application
General Purpose
Shaft Material
303
Endshield Material
Aluminum
Duty Cycle
Continuous
Voltage @ 50Hz
190/380V AC
Finish
Epoxy-Coated

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,765 RPM, Voltage 230/460V AC, Full Load Amps 7.6/3.8 A, 182T Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
