  11. Washdown Motor, 3 Ph, TEFC, 5 HP, 1750 rpm

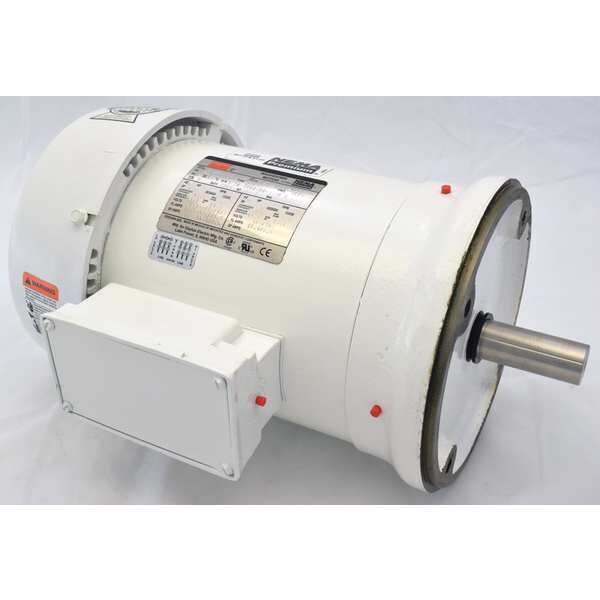

Dayton Washdown Motor, 3 Ph, TEFC, 5 HP, 1750 rpm 5XAU7 - main

Washdown Motor, 3 Ph, TEFC, 5 HP, 1750 rpm

  • Mfr # 5XAU7

  • Zoro # G0889445

product price: $1,632.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5XAU7
Zoro #
G0889445
UPC #
190735355596
Country of Origin
Mexico

Dimensions

Overall Length
14 1/2 in
Shaft Dia.
1 1/8 in
Shaft Length
2 5/8 in
Length Less Shaft
14 1/8 in
Body Dia.
8.38 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
184TC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Standards
CSA Certified (LR225293), UL Recognized (E47479), USDA Approved
Full Load Amps
12.5/6.2 A
Motor Shaft Design
Keyed
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Inverter Rated
Inverter Rated
Shaft Material
303
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Hz
60/50 Hz
Motor Mounting Type
C-Face
Frame Material
Epoxy Coated
Footnotes
8, 11
Motor Bearings
Ball
Endshields
Cast Aluminum
Drain Plugs
(2) in Conduit Box, (3) Shaft End, (4) Lead End
Conduit Box
Cast Aluminum with Buna-N Gasketed Cover
NEMA Design
B
CC Number
CC030A
Ins. Class
F
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
Horizontal
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Nameplate RPM
1,755 RPM
Motor Application
General Purpose
Nominal Efficiency
89.5 %
Duty Cycle
Continuous
Endshield Material
Aluminum
Finish
Epoxy-Coated
Voltage @ 50Hz
190/380V AC

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,755 RPM, Voltage 230/460V AC, Full Load Amps 12.5/6.2 A, 184TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Motor Frame Material Steel
