Shop All Room Air Conditioner Motors
Century

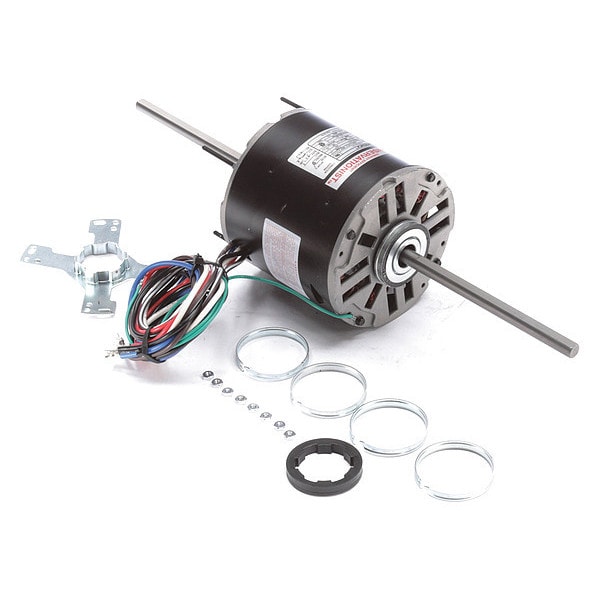

Room Air Cond Mtr, PSC, OAO, 1075 RPM

product price: $289.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Permanent Split Capacitor
  • HP 3/4
  • RPM Range 1,001-1,100
  • No. of Speeds 3
  • Voltage 208-230V AC
See all product information

Product Information

Dimensions

Shaft Dia. 1/2 in
Resilient Ring Dia. 2 1/4 in
Length Less Shaft 5 7/8 in
Stud Size #8-32 x 1-5/8 in
Lead Length 35 in
Bolt Circle Dia. 5 1/8 in
Body Dia. 5 5/8 in
Shaft Length 7 3/8 in
Overall Length 20 in

Details

Motor Design Permanent Split Capacitor
HP 3/4
RPM Range 1,001-1,100
No. of Speeds 3
Voltage 208-230V AC
Motor Shaft Rotation CCWLE
Frame 48Y
Motor Enclosure Design Open Air-Over
Motor Mounting Type Ring/Stud
Motor Sub Application Room Air Conditioner
Item Room Air Conditioner Motor
Motor Thermal Protection Auto
Motor Application HVAC/R
Full Load Amps 3.06 A
Motor Service Factor 1
Phase Single
Mounting Stud Pattern 3-5/8 in x 3-5/8 in
Max. Ambient Temp. 40 Degrees C
Standards CSA Certified, UL Recognized
Duty Continuous
Capacitor Required 2MDV6
Hz 60 Hz
Motor Bearings Sleeve
Nameplate RPM 1,075
Ins. Class A
Voltage Compatibility 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Duty Cycle Continuous
Stud Quantity 4
Usable @ 200V No
Includes Extended Studs, Permanent Split Capacitor, Resilient Rings
Motor Mounting Position Horizontal
Usable @ 208V Yes
Weight 19 lb
Motor Shaft Design Flat
Number of Shafts 2
Motor Frame Material Steel
Mounting Holes (4) #8-32
Application Room Air Conditioners And Through-The-Wall Units, Shaft-Mounted Fan And Blower
Number of Speeds 3
Mounting Stud

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 208-230V AC, Full Load Amps 3.06 A, 48Y Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class A, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 35 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring/Stud
