  11. Washdown Motor, 3 Ph, TEFC, 5 HP, 3515 rpm

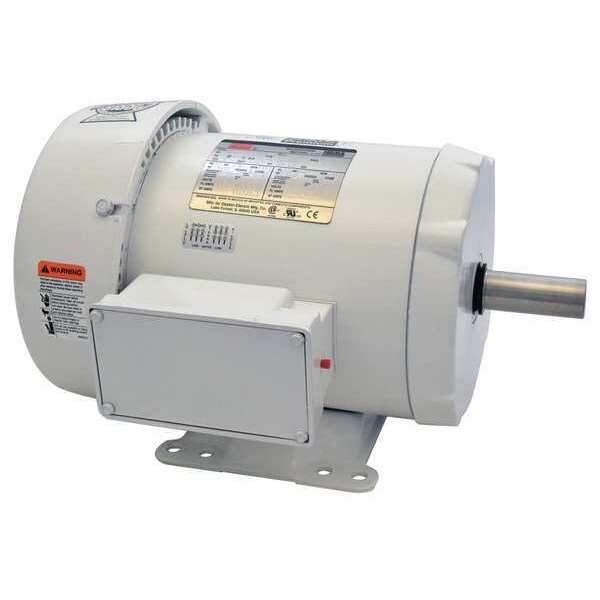

Dayton Washdown Motor, 3 Ph, TEFC, 5 HP, 3515 rpm 5XAU3BG - main

Washdown Motor, 3 Ph, TEFC, 5 HP, 3515 rpm

  • Mfr # 5XAU3BG

  • Zoro # G2016366

product price: $2,224.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5XAU3BG
Zoro #
G2016366
UPC #
00190735355558
Country of Origin
Mexico

Dimensions

Body Dia.
8.38 in
Length Less Shaft
12 3/4 in
Overall Length
15 3/4 in
Shaft Dia.
1 1/8 in
Shaft Length
3 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
184T
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Conduit Box
Cast Aluminum with Buna-N Gasketed Cover
Motor Bearings
Ball
Ins. Class
F
Hz
60/50 Hz
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
NEMA Design
B
Full Load Amps
12.1/6.1 A
Endshields
Cast Aluminum
Includes
Shaft Key
Shaft Material
303
Motor Shaft Rotation
CW/CCW
Motor Application
General Purpose
Nominal Efficiency
89.5 %
Drain Plugs
(2) in Conduit Box, (4) Lead End, (4) Shaft End
Duty
Continuous
Nameplate RPM
3,525 RPM
Footnotes
8, 11
Max. Ambient Temp.
40 Degrees C
CC Number
CC030A
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Motor Mounting Type
Rigid Base
Frame Material
Epoxy Coated
Motor Service Factor
1.15
Inverter Rated
Inverter Rated
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Endshield Material
Aluminum
Duty Cycle
Continuous
Voltage @ 50Hz
190/380V AC
Finish
Epoxy-Coated

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,525 RPM, Voltage 230/460V AC, Full Load Amps 12.1/6.1 A, 184T Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
