Shop DAYTON

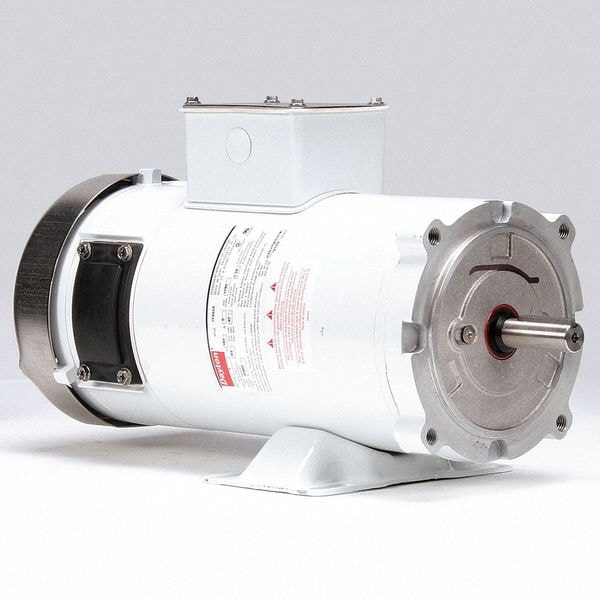

Wshdwn DC Mtr, TEFC, 1 HP, 1750rpm, 180VDC

  • Mfr # 1F640A
  • Zoro # G1281287
product price:
$
996.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Magnet
HP
1
RPM Range
1,701-1,800
Voltage
180V DC
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1F640A
Zoro #
G1281287
UPC #
-
Country of Origin
United States

Dimensions

Length Less Shaft
12 7/8 in
Overall Length
17 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Frame Size
56C
Shaft Diameter
5/8 in
Wire Rope Length
17 in
Length
17 in

Details

Item
Washdown Motor
Motor Design
Permanent Magnet
HP
1
RPM Range
1,701-1,800
Voltage
180V DC
Frame
56C
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Full Load Torque
36.6 in-lb
Standards
UL Recognized (E47479)
Ins. Class
H
Motor Application
Washdown
RPM Group
1701-1800
Features
Removable Base
Motor Mounting Type
Face/Base
Max. Ambient Temp.
40 Degrees C
Full Load Amps
5.0 A
Rotation
CW/CCW
Voltage Compatibility
180V DC
Nameplate RPM
1,750 RPM
Bearings
Ball
NEMA Design
H
Motor Bearings
Ball
Motor Shaft Rotation
CCW, CW
Usable @ 200V
No
Removable Base
Yes
Usable @ 208V
No
No. of Speeds
1
Motor Sub Application
Aeration Fan
Ambient Temperature - Maximum
40 Degrees C
Full Load Current
5.0 A
Product Type
Washdown Motor
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Fan Cooled
Includes
Removable Base
Insulation Class
H
Bearing Type
Ball
Application
Washdown
Nameplate Voltage
180V DC
Sub Application
Aeration Fan
Frame Finish
Epoxy-Coated

Description

Washdown Motor,1 HP,1750,56C,180V

Restrictions

Hazardous material
