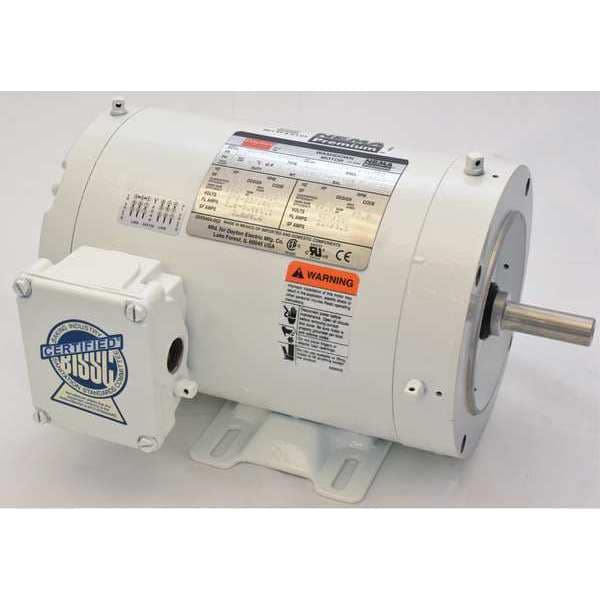

Washdown Motor, 3 Ph, TENV, 1 HP, 3520 rpm

DAYTON| Zoro #: G2121524| Mfr #: 1TRZ9BG

$577.32 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
NEMA Design: BMotor Shaft Design: KeyedNameplate RPM: 3520
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G2121524 Mfr #: 1TRZ9BG
NEMA Design: BMotor Shaft Design: Keyed
Nameplate RPM: 3520Nominal Efficiency: 85.5%
Motor Application: WashdownMotor Bearings: Ball
Ins. Class: FShaft Material: 303 Stainless Steel
Motor Thermal Protection: NoneHP: 1
Endshields: Cast AluminumDrain Plugs: (4) Each End, (2) In Conduit Box
Frame: 56cFrame Material: White Epoxy Coated
RPM Range: 3001-3600Footnotes: 2, 12, 51
Voltage Compatibility: 460, 230/460, 220-230/460Shaft Length: 2"
Body Dia.: 6-1/2"Item: Washdown Motor
Length Less Shaft: 9-3/4"Standards: UL Recognized (E47479), CSA Certified (258525), USDA Approved
Motor Mounting Type: Face/BasePhase: 3
Voltage: 230/460Max. Ambient Temp.: 40 Degrees C
Conduit Box: Cast Oversized GasketedMotor Design: 3-Phase
Full Load Amps: 2.5/1.2Motor Enclosure Design: Totally Enclosed Nonventilated
Duty: ContinuousShaft Dia.: 5/8"
Inverter Rated: YesHz: 60/50
Motor Service Factor: 1.15Overall Length: 11-3/4"
Motor Shaft Rotation: CW/CCWMotor Mounting Position: All Angle
Country of Origin (subject to change): Mexico

Description

Washdown Motor, 3-Phase, 1 HP, 3520 Nameplate RPM, Voltage 230/460, Phase 3, 56C Frame, Totally Enclosed Nonventilated, Full Load Amps 2.5/1.2, 60/50 Hz, All Angle Motor Mounting Position, Motor Thermal Protection None, F Ins. Class, Motor Service Factor 1.15, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 11-3/4 In., Shaft Dia. 5/8 In., Shaft Length 2 In., Body Dia. 6-1/2 In., Length Less Shaft 9-3/4 In., Continuous Duty
