  11. Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm

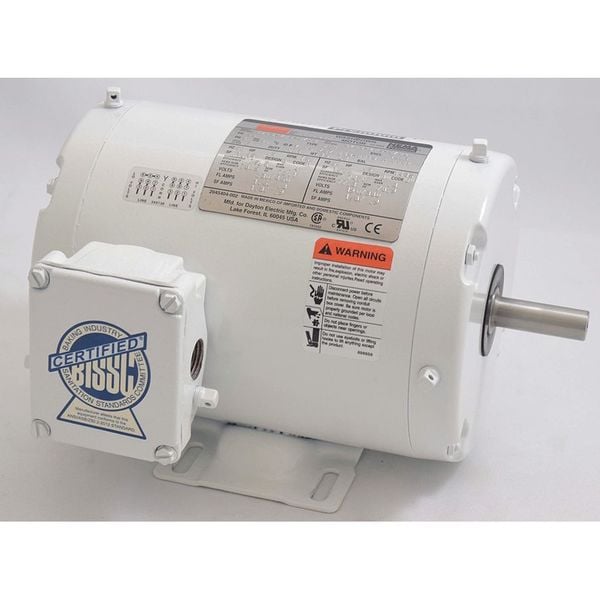

Dayton Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm 1TTC3 - main

Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm

  • Mfr # 1TTC3

  • Zoro # G2113002

product price: $692.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1TTC3
Zoro #
G2113002
UPC #
190735147887
Country of Origin
Mexico

Dimensions

Overall Length
10 13/16 in
Body Dia.
6.5 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Length Less Shaft
8 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Shaft Material
303
Nameplate RPM
1,750 RPM
NEMA Design
B
Duty
Continuous
Motor Bearings
Ball
Conduit Box
Cast Oversized Gasketed
Motor Mounting Position
Horizontal
Hz
60/50 Hz
Motor Application
General Purpose
Full Load Amps
1.6/0.8 A
Inverter Rated
Inverter Rated
Endshields
Cast Aluminum
Drain Plugs
(2) in Conduit Box, (4) Each End
Includes
Side-Mounted Conduit Box
Frame Material
Epoxy Coated
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Motor Shaft Design
Keyed
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Motor Mounting Type
Rigid Base
CC Number
CC030A
Motor Service Factor
1.15
Nominal Efficiency
78.5 %
Ins. Class
F
Endshield Material
Aluminum
Duty Cycle
Continuous
Finish
Epoxy-Coated
Voltage @ 50Hz
190/380V AC

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,750 RPM, Voltage 230/460V AC, Full Load Amps 1.6/0.8 A, 56 Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
