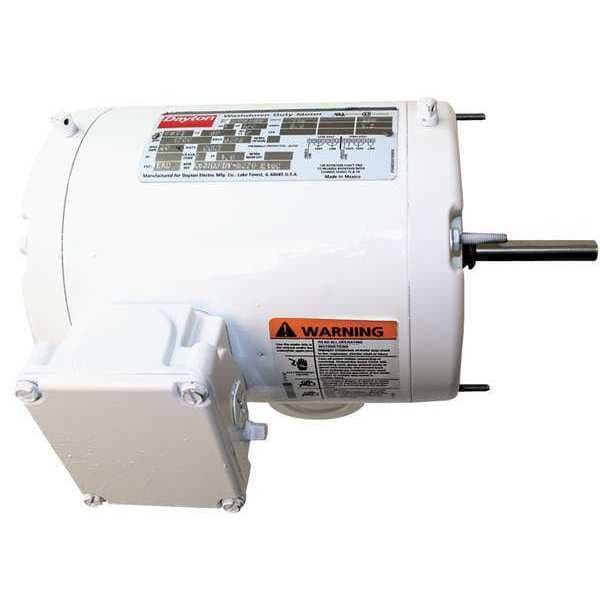

Dayton Washdown Motor, PSC, TEAO, 1/4 HP, 1700 rpm 5M063 - main

Washdown Motor, PSC, TEAO, 1/4 HP, 1700 rpm

  • Mfr # 5M063

  • Zoro # G1987297

product price: $834.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,601-1,700
Voltage
115/230V AC
Frame
56YZ
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5M063
Zoro #
G1987297
UPC #
00194484308056
Country of Origin
Mexico

Dimensions

Length Less Shaft
7 7/8 in
Shaft Length
3 in
Shaft Dia.
1/2 in

Details

Item
Washdown Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4 hp
RPM Range
1,601-1,700
Voltage
115/230V AC
Frame
56YZ
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Drain Plugs
T-type
Motor Shaft Rotation
CW/CCW
Standards
CSA Certification (258501), UL Recognized (E37403), USDA Approved
Full Load Amps
3.5/1.7 A
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Shaft Design
Keyed
Nominal Efficiency
57.6 %
Ins. Class
F
Nameplate RPM
1,700 RPM
Motor Service Factor
1
Motor Mounting Type
Yoke
Motor Application
General Purpose
Shaft Material
303
Motor Mounting Position
All Angle
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Finish
Epoxy-Coated

Description

Washdown Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,700 RPM, Voltage 115/230V AC, Full Load Amps 3.5/1.7 A, 56YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Yoke, Motor Mounting Position All Angle, Finish Epoxy-Coated
