  11. Washdown Motor, TEFC, 2 HP, 1725 rpm, 56HC

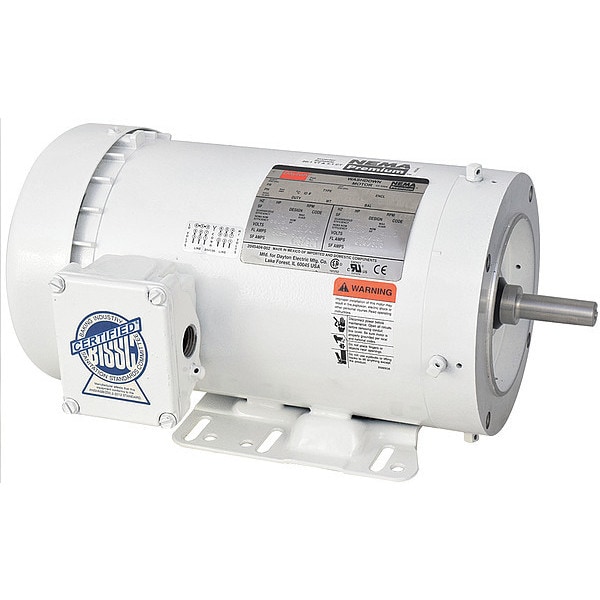

Dayton Washdown Motor, TEFC, 2 HP, 1725 rpm, 56HC 48ZJ93 - main

Washdown Motor, TEFC, 2 HP, 1725 rpm, 56HC

  • Mfr # 48ZJ93

  • Zoro # G8095346

product price: $1,139.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
48ZJ93
Zoro #
G8095346
UPC #
190735905203
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 3/4 in
Body Dia.
6.5 in
Overall Length
12 5/8 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56HC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Nameplate RPM
1,750 RPM
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Shaft Rotation
CW/CCW
Conduit Box
Oversize Cast Aluminum with Nitrile Gasket
Hz
60/50 Hz
Includes
Shaft Key
Inverter Rated
Not Inverter Rated
Motor Service Factor
1.15
NEMA Design
B
Motor Bearings
Ball
Drain Plugs
(2) in Conduit Box
Motor Application
General Purpose
Full Load Amps
6.3/3.1 A
Duty
Continuous
CC Number
CC030A
Standards
CSA (258525), UL (E47479)
Endshields
Cast Aluminum
Shaft Material
Stainless Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
C-Face, Rigid Base
Application
Washguard
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
86.5 %
Motor Shaft Design
Keyed
Endshield Material
Aluminum
Duty Cycle
Continuous
Finish
Epoxy-Coated
Voltage @ 50Hz
190/380V AC

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,750 RPM, Voltage 230/460V AC, Full Load Amps 6.3/3.1 A, 56HC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal, Inverter Rating Not Applicable
