  11. Washdown Mtr, 3 Ph, TENV, 1-1/2 HP, 3450 rpm

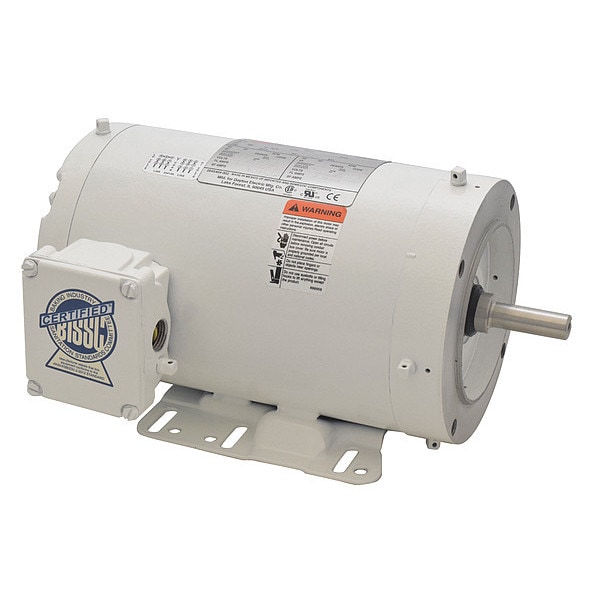

Dayton Washdown Mtr, 3 Ph, TENV, 1-1/2 HP, 3450 rpm 1TTA1BH - main

Washdown Mtr, 3 Ph, TENV, 1-1/2 HP, 3450 rpm

  • Mfr # 1TTA1BH

  • Zoro # G1499671

product price: $1,173.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
56HC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1TTA1BH
Zoro #
G1499671
UPC #
190735147733
Country of Origin
Mexico

Dimensions

Overall Length
12 3/4 in
Shaft Length
2 in
Length Less Shaft
10 3/4 in
Shaft Dia.
5/8 in
Body Dia.
6.63 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 1/2 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
56HC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Shaft Rotation
CW/CCW
Nameplate RPM
3,505 RPM
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
Drain Plugs
(2) in Conduit Box, (4) Lead End, (4) Shaft End
NEMA Design
B
Ins. Class
F
Shaft Material
303
Motor Application
General Purpose
Conduit Box
Cast Aluminum with Buna-N Gasketed Cover
Endshields
Cast Aluminum
Duty
Continuous
Inverter Rated
Inverter Rated
Nominal Efficiency
86.5 %
Motor Shaft Design
Keyed
Motor Mounting Type
C-Face, Rigid Base
Motor Mounting Position
Horizontal
CC Number
CC030A
Motor Service Factor
1.15
Hz
60/50 Hz
Frame Material
Epoxy Coated
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Full Load Amps
3.6/1.8 A
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Duty Cycle
Continuous
Endshield Material
Aluminum
Voltage @ 50Hz
190/380V AC
Finish
Epoxy-Coated

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 3,505 RPM, Voltage 230/460V AC, Full Load Amps 3.6/1.8 A, 56HC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
