Shop DELAVAN FLUID POWER

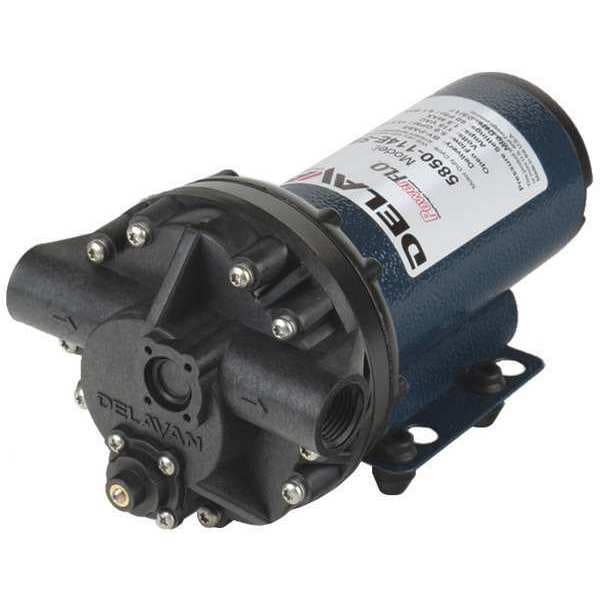

Diaphragm Pump, Polypropylene, Santoprene, 115, 5.0 GPM

  • Mfr # 5850-114E-SB

  • Zoro # G1593267

product price:  $226.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Air Intake Connection Size
1/2 in FNPT
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5850-114E-SB
Zoro #
G1593267
UPC #
830344009250
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in FNPT
Overall Width
5 in
Overall Height
4.6 in
Overall Length
9.1 in
Media Discharge Connection Size
1/2 in
Media Intake Connection Size
1/2 in
Discharge Connection Size
1/2 in
Intake Connection Size
1/2 in
Discharge Diameter
1/2 in
Inlet Diameter
1/2 in
Shaft Outer Diameter
8 mm

Details

Item
Diaphragm Pump
Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
60 psi
Diaphragm Design
Five Chamber
Inlet/Outlet
1/2 FNPT
Pressure Off
100 psi
Fuse Amps
1.5 A
Prime in Feet
8
Pressure On
20 psi
Pressure Switch
No
Motor Type
Totally enclosed Nonventilated
Type
Diaphragm
Agency Compliance
CE/NSF
Features
3-Pin Wall Plug
Pump Operation Type
Electric
Standards
NSF Certified
Flow Rate (Maximum)
5 gpm
Motor Enclosure
Totally Enclosed Non-Ventilated
Nameplate Voltage
120V AC
Diaphragm Chamber Design
5
Flow Rate @ 20 psi
4.1 gpm
Current
1.5 A
Priming
Self-Priming
Flow Rate @ 40 psi
3.2 gpm
Flow Rate @ 0 psi
5.4 gpm
Series
5800
Media Intake Connection Type
FNPT
Media Discharge Connection Type
FNPT
Housing Material
Polypropylene
Check Valve Material
FKM
Intake Connection Type
FNPT
Discharge Connection Type
FNPT
Self-Priming Lift - Maximum
12 ft
Includes Gearbox
No Gearbox Included
Discharge Pressure - Maximum
60 psi
Power Source
Electric
Full Load Current
22.5
Gasket Material
FKM
Feet of Head (Maximum)
138.4 ft
Fluid Head Material
Polypropylene
Motor Speed - Maximum
2,200 RPM
Pump Technology
Diaphragm
Chemical Compatibility
Fertilizer, Herbicide
Pump Control Type
Bypass
Includes Regulator
No Regulator Included
Media Temperature - Maximum
140 Degrees F
Number of Diaphragms
1
Electrical Connection Type
Power Cord with Plug
Bypass Pressure
10 psi
Includes Heat Sink
No Heat Sink Included
Phase
Single
Frequency
60 Hz
Pumping Application
Boom Spraying, Chemical Transfer, Deicing, Disinfectant/Sanitizer Spraying, Fertilizer Application, Herbicide Spraying, Irrigation, Lawn Care, Orchard Spraying, Pest Control, Pesticide Spraying, Soft Wash, Turf Spraying, Vineyard Spraying, Water Transfer
Pump Drive Configuration
Electric Motor Unit
Power Source - TS Only
Electric

Description

Diaphragm Pump, Operating Pressure (Maximum) 60 psi, Diaphragm Chamber Design 5, Diaphragm Material Santoprene, Check Valve Material FKM, Discharge Connection Size 1/2 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 5 gpm, Housing Material Polypropylene, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Nameplate Voltage 120V AC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch No, Standards NSF Certified, Feet of Head (Maximum) 138.4 ft
