Shop DELAVAN FLUID POWER

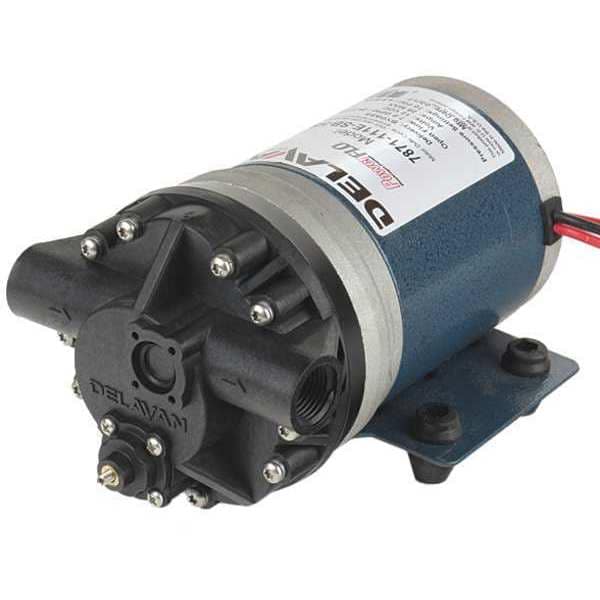

Diaphragm Pump, Polypropylene, Santoprene, 12VDC, 7.0 GPM

  • Mfr # 7871-111E-SB-HS

  • Zoro # G1593739

product price:  $257.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Valve Material
Santoprene®
Air Intake Connection Size
1/2 in FNPT
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7871-111E-SB-HS
Zoro #
G1593739
UPC #
830344009311
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in FNPT
Overall Width
5.5 in
Overall Length
9.1 in
Overall Height
4.8 in
Media Intake Connection Size
1/2 in
Media Discharge Connection Size
1/2 in
Discharge Connection Size
1/2 in
Intake Connection Size
1/2 in
Discharge Diameter
1/2 in
Shaft Outer Diameter
8 mm
Inlet Diameter
1/2 in
Wire Rope Length
9.1 in

Details

Item
Diaphragm Pump
Housing Material - Pumps
Polypropylene
Valve Material
Santoprene®
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
60 psi
Diaphragm Design
Five Chamber
Pressure Switch
No
Pressure On
20 psi
Inlet/Outlet
1/2 FNPT
Features
Heat Sink On Motor to Keep It Cool, FB3 Series
Motor Type
Totally enclosed Nonventilated
Type
Diaphragm
Prime in Feet
8
Pressure Off
100 psi
Fuse Amps
30 A
Agency Compliance
CE/NSF
Pump Operation Type
Electric
Standards
NSF Certified
Flow Rate (Maximum)
7 gpm
Diaphragm Chamber Design
5
Flow Rate @ 20 psi
6.2 gpm
Flow Rate @ 0 psi
7.2 gpm
Priming
Self-Priming
Current
30 A
Flow Rate @ 40 psi
5.4 gpm
Series
FB3
Motor Enclosure
Totally Enclosed Non-Ventilated
Nameplate Voltage
12V DC
Media Intake Connection Type
FNPT
Media Discharge Connection Type
FNPT
Intake Connection Type
FNPT
Discharge Connection Type
FNPT
Housing Material
Polypropylene
Check Valve Material
Santoprene
Electrical Connection Type
Two-Pin Molded Connector
Phase
Single
Gasket Material
FKM
Full Load Current
22.5
Pumping Application
Boom Spraying, Chemical Transfer, Deicing, Disinfectant/Sanitizer Spraying, Fertilizer Application, Herbicide Spraying, Irrigation, Lawn Care, Orchard Spraying, Pest Control, Pesticide Spraying, Soft Wash, Turf Spraying, Vineyard Spraying, Water Transfer
Chemical Compatibility
Fertilizer, Herbicide
Includes Gearbox
No Gearbox Included
Includes Heat Sink
Heat Sink Included
Bypass Pressure
10 psi
Self-Priming Lift - Maximum
12 ft
Fluid Head Material
Polypropylene
Discharge Pressure - Maximum
60 psi
Pump Control Type
Bypass
Power Source
Electric
Motor Speed - Maximum
2,200 RPM
Pump Drive Configuration
Electric Motor Unit
Number of Diaphragms
1
Feet of Head (Maximum)
138.4 ft
Includes Regulator
No Regulator Included
Media Temperature - Maximum
140 Degrees F
Pump Technology
Diaphragm
Power Source - TS Only
Electric

Description

Diaphragm Pump, Operating Pressure (Maximum) 60 psi, Diaphragm Chamber Design 5, Diaphragm Material Santoprene, Check Valve Material Santoprene, Discharge Connection Size 1/2 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 7 gpm, Housing Material Polypropylene, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Nameplate Voltage 12V DC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch No, Standards NSF Certified, Flow Rate @ 20 psi 6.2 gpm, Current 30 A
