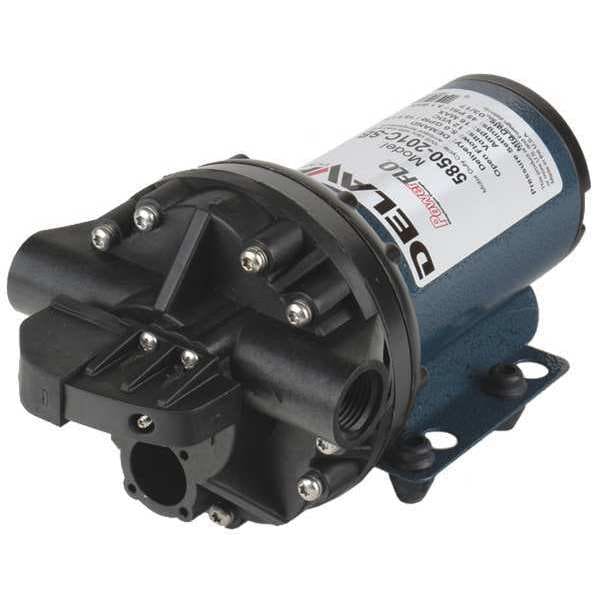

Diaphragm Pump, Polypropylene, Santoprene, 12VDC, 5 GPM

  • Mfr # 5850-201C-SB

  • Zoro # G1593118

product price:  $146.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Air Intake Connection Size
1/2 in FNPT
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5850-201C-SB
Zoro #
G1593118
UPC #
830344003296
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in FNPT
Overall Width
5 in
Overall Height
4.6 in
Overall Length
9.1 in
Media Discharge Connection Size
1/2 in
Media Intake Connection Size
1/2 in
Intake Connection Size
1/2 in
Discharge Connection Size
1/2 in
Discharge Diameter
1/2 in
Shaft Outer Diameter
8 mm
Inlet Diameter
1/2 in

Details

Item
Diaphragm Pump
Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
45 psi
Inlet/Outlet
1/2 FNPT
Agency Compliance
CE/NSF
Pressure Switch
Yes
Prime in Feet
8
Type
Diaphragm
Pressure On
20 psi
Motor Type
Totally enclosed Nonventilated
Fuse Amps
20 A
Pressure Off
100 psi
Diaphragm Design
Five Chamber
Pump Operation Type
Electric
Standards
NSF Certified
Nameplate Voltage
12V DC
Series
5800
Flow Rate @ 40 psi
3.2 gpm
Flow Rate (Maximum)
5 gpm
Flow Rate @ 0 psi
5.4 gpm
Current
20 A
Priming
Self-Priming
Diaphragm Chamber Design
5
Motor Enclosure
Totally Enclosed Non-Ventilated
Flow Rate @ 20 psi
4.1 gpm
Media Discharge Connection Type
FNPT
Media Intake Connection Type
FNPT
Housing Material
Polypropylene
Check Valve Material
FKM
Intake Connection Type
FNPT
Discharge Connection Type
FNPT
Includes Gearbox
No Gearbox Included
Electrical Connection Type
Two-Pin Molded Connector
Phase
Single
Pressure Switch On Pressure
35 psi
Media Temperature - Maximum
140 Degrees F
Gasket Material
FKM
Pump Technology
Diaphragm
Pumping Application
Boom Spraying, Chemical Transfer, Deicing, Disinfectant/Sanitizer Spraying, Fertilizer Application, Herbicide Spraying, Irrigation, Lawn Care, Orchard Spraying, Pest Control, Pesticide Spraying, Soft Wash, Turf Spraying, Vineyard Spraying, Water Transfer
Number of Diaphragms
1
Pressure Switch Off Pressure
45 psi
Power Source
Electric
Discharge Pressure - Maximum
45 psi
Includes Heat Sink
No Heat Sink Included
Includes Regulator
No Regulator Included
Motor Speed - Maximum
2,200 RPM
Pump Drive Configuration
Electric Motor Unit
Self-Priming Lift - Maximum
12 ft
Pump Control Type
Demand
Full Load Current
22.5
Feet of Head (Maximum)
103.8 ft
Fluid Head Material
Polypropylene
Chemical Compatibility
Fertilizer, Herbicide
Power Source - TS Only
Electric

Description

Diaphragm Pump, Operating Pressure (Maximum) 45 psi, Diaphragm Chamber Design 5, Diaphragm Material Santoprene, Check Valve Material Viton, Discharge Connection Size 1/2 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 5 gpm, Housing Material Polypropylene, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Nameplate Voltage 12V DC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch Yes, Standards NSF Certified, Flow Rate @ 20 psi 4.1 gpm, Current 20 A
