Shop DELAVAN FLUID POWER

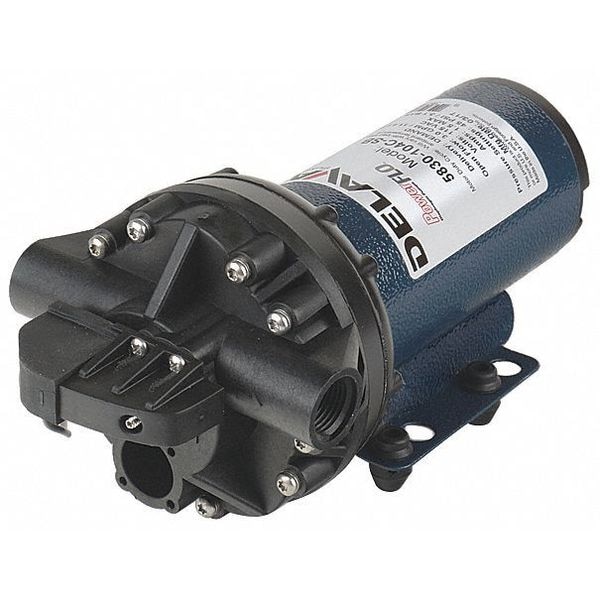

Diaphragm Pump, Polypropylene, Santoprene, 115, 3.0 GPM

  • Mfr # 5830-104C-SB

  • Zoro # G1593273

product price:  $195.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Air Intake Connection Size
1/2 in FNPT
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5830-104C-SB
Zoro #
G1593273
UPC #
830344009212
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in FNPT
Overall Length
9.1 in
Overall Width
5 in
Overall Height
4.6 in
Media Intake Connection Size
1/2 in
Media Discharge Connection Size
1/2 in
Intake Connection Size
1/2 in
Discharge Connection Size
1/2 in
Shaft Outer Diameter
8 mm
Discharge Diameter
1/2 in
Inlet Diameter
1/2 in
Wire Rope Length
9.1 in

Details

Item
Diaphragm Pump
Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
45 psi
Agency Compliance
CE/NSF
Features
3-Pin Wall Plug
Pressure Switch
Yes
Diaphragm Design
Five Chamber
Fuse Amps
1.5 A
Inlet/Outlet
1/2 FNPT
Pressure Off
100 psi
Prime in Feet
8
Motor Type
Totally enclosed Nonventilated
Type
Diaphragm
Pressure On
20 psi
Pump Operation Type
Electric
Standards
NSF Certified
Nameplate Voltage
120V AC
Flow Rate @ 40 psi
1.8 gpm
Series
5800
Current
1.5 A
Priming
Self-Priming
Motor Enclosure
Totally Enclosed Non-Ventilated
Flow Rate @ 20 psi
2.5 gpm
Flow Rate @ 0 psi
3.5 gpm
Flow Rate (Maximum)
3 gpm
Diaphragm Chamber Design
5
Media Discharge Connection Type
FNPT
Media Intake Connection Type
FNPT
Housing Material
Polypropylene
Discharge Connection Type
FNPT
Intake Connection Type
FNPT
Check Valve Material
FKM
Frequency
60 Hz
Full Load Current
22.5
Number of Diaphragms
1
Pressure Switch On Pressure
35 psi
Pressure Switch Off Pressure
45 psi
Pump Drive Configuration
Electric Motor Unit
Chemical Compatibility
Fertilizer, Herbicide
Power Source
Electric
Includes Heat Sink
No Heat Sink Included
Phase
Single
Self-Priming Lift - Maximum
12 ft
Discharge Pressure - Maximum
45 psi
Includes Regulator
No Regulator Included
Pumping Application
Boom Spraying, Chemical Transfer, Deicing, Disinfectant/Sanitizer Spraying, Fertilizer Application, Herbicide Spraying, Irrigation, Lawn Care, Orchard Spraying, Pest Control, Pesticide Spraying, Soft Wash, Turf Spraying, Vineyard Spraying, Water Transfer
Pump Control Type
Demand
Pump Technology
Diaphragm
Electrical Connection Type
Power Cord with Plug
Gasket Material
FKM
Motor Speed - Maximum
2,200 RPM
Includes Gearbox
No Gearbox Included
Feet of Head (Maximum)
103.8 ft
Fluid Head Material
Polypropylene
Media Temperature - Maximum
140 Degrees F
Power Source - TS Only
Electric

Description

Diaphragm Pump, Operating Pressure (Maximum) 45 psi, Diaphragm Chamber Design 5, Diaphragm Material Santoprene, Check Valve Material Viton, Discharge Connection Size 1/2 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 3 gpm, Housing Material Polypropylene, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Nameplate Voltage 120V AC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch Yes, Standards NSF Certified, Flow Rate @ 20 psi 2.5 gpm, Current 1.5 A
