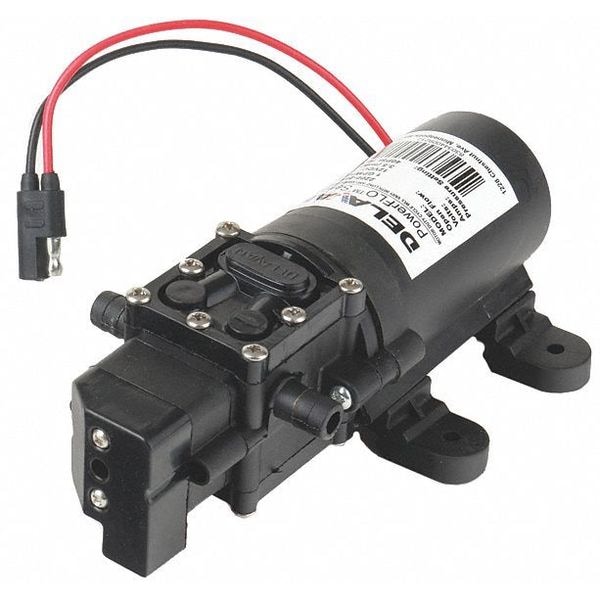

Diaphragm Pump, Polypropylene, Santoprene(R), 12VDC, 1.0 GPM

  • Mfr # 2200-201-SB
  • Zoro # G1593781
product price:
$
34.99
/ea

Key Features

Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Air Intake Connection Size
3/8 in HB
Air Intake Connection Type
Barbed
Diaphragm Material
Santoprene
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2200-201-SB
Zoro #
G1593781
UPC #
830344009724
Country of Origin
China

Dimensions

Air Intake Connection Size
3/8 in HB
Overall Height
2.6 in
Overall Length
6.9 in
Overall Width
3.9 in
Media Intake Connection Size
3/8 in
Media Discharge Connection Size
3/8 in
Intake Connection Size
3/8 in
Discharge Connection Size
3/8 in
Inlet Diameter
3/8 in
Shaft Outer Diameter
8 mm
Discharge Diameter
3/8 in
Wire Rope Length
6.9 in
Length
6.9 in

Details

Item
Diaphragm Pump
Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Air Intake Connection Type
Barbed
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
40 psi
Diaphragm Design
Two Chamber
Motor Type
Totally enclosed Nonventilated
Prime in Feet
18
Pressure Off
40 psi
Type
Diaphragm
Pressure Switch
Yes
Agency Compliance
CE/NSF
Inlet/Outlet
3/8 HB
Fuse Amps
3.5 A
Pressure On
20 psi
Standards
CE, NSF
Pump Operation Type
Electric
Current
3.5 A
Flow Rate @ 20 psi
0.78 gpm
Flow Rate (Maximum)
1 gpm
Series
2200
Priming
Self-Priming
Flow Rate @ 0 psi
1.16 gpm
Diaphragm Chamber Design
2
Flow Rate @ 40 psi
0.6 gpm
Nameplate Voltage
12V DC
Media Discharge Connection Type
Barbed
Media Intake Connection Type
Hose
Discharge Connection Type
Barbed
Housing Material
Polypropylene
Check Valve Material
FKM
Intake Connection Type
Hose
Discharge Pressure - Maximum
45 psi
Phase
Single
Self-Priming Lift - Maximum
12 ft
Gasket Material
FKM
Media Temperature - Maximum
140 Degrees F
Electrical Connection Type
Power Cord with Plug
Number of Diaphragms
1
Includes Gearbox
No Gearbox Included
Feet of Head (Maximum)
103.8 ft
Pump Drive Configuration
Electric Motor Unit
Includes Heat Sink
No Heat Sink Included
Power Source
Electric
Includes Regulator
No Regulator Included
Motor Speed - Maximum
2,200 RPM
Discharge Standard
Barbed
Pressure Switch On Pressure
35 psi
Pump Control Type
Demand
Pumping Application
Boom Spraying, Chemical Transfer, Deicing, Disinfectant/Sanitizer Spraying, Fertilizer Application, Herbicide Spraying, Irrigation, Lawn Care, Orchard Spraying, Pest Control, Pesticide Spraying, Soft Wash, Turf Spraying, Vineyard Spraying, Water Transfer
Chemical Compatibility
Fertilizer, Herbicide
Full Load Current
22.5
Pump Technology
Diaphragm
Fluid Head Material
Polypropylene
Inlet Standard
Hose
Pressure Switch Off Pressure
45 psi
Power Source - TS Only
Electric
Power Source - old
Electric

Description

Diaphragm Pump, Operating Pressure (Maximum) 40 psi, Air Intake Connection Type Barbed, Diaphragm Chamber Design 2, Diaphragm Material Santoprene, Check Valve Material Viton, Discharge Connection Size 3/8 in, Discharge Connection Type Barbed, Flow Rate (Maximum) 1 gpm, Housing Material Polypropylene, Intake Connection Size 3/8 in, Intake Connection Type Hose, Nameplate Voltage 12V DC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch Yes, Standards CE, NSF
