  9. Spray Pump, 8-Roller, Housing Cast Iron

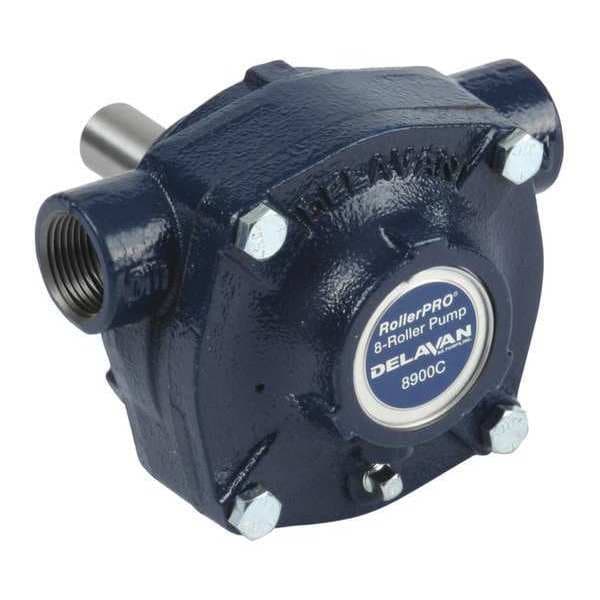

Delavan Fluid Power Spray Pump, 8-Roller, Housing Cast Iron 8900C - main

Spray Pump, 8-Roller, Housing Cast Iron

  • Mfr # 8900C

  • Zoro # G1593967

product price: $221.99
/ea
Free Shipping & Returns

Key Features

Type
8-Roller
Construction
Cast iron
Characteristics
Field Serviceable, Ultra Rollers Do Not Swell In Water
GPM @ 20 PSI
12.4/23.2
GPM @ 100 PSI
10.6/21.8
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8900C
Zoro #
G1593967
UPC #
830344004002
Country of Origin
United States

Dimensions

Shaft Dia. (In.)
15/16 in
Height (In.)
5 1/8 in
Length (In.)
6 3/8 in
Width (In.)
6 3/8 in
Overall Width
6.4 in
Discharge Connection Size
1 in
Shaft Outer Diameter
1 in
Overall Height
5.1 in
Intake Connection Size
1 in
Overall Length
6.4 in

Details

Item
Roller Spray Pump
Type
8-Roller
Construction
Cast iron
Characteristics
Field Serviceable, Ultra Rollers Do Not Swell In Water
GPM @ 20 PSI
12.4/23.2
GPM @ 100 PSI
10.6/21.8
GPM @ 40 PSI
11.6/22.4
Housing Material
Cast Iron
HP @ 0 PSI
0.33/1.56
HP @ 50 PSI
0.74/1.78
GPM @ 0 PSI
13.0/24.0
For Use With
Nonabrasive Wettable Powders, Water Soluble Chemicals
Includes
Permanently-Lubricated Heavy Duty Sealed Bearings, Ultra Rollers, Viton Lip Seals
RPM
540/1000
Application
Agricultural Spraying, Water Transfer
HP @ 100 PSI
1.25/2.53
Rotation
Counterclockwise
Inlet/Outlet NPT (In.)
1 F
Suction Lift (Ft.)
5 ft
Design
Field Serviceable, Overmolded Rotor and Ultra Rollers to Provide Superior Performance
Roller Material
Polypropylene, Steel
Motor Shaft Rotation
CCWSE
Media Temperature (Maximum)
140 Degrees F
Flow Rate (Maximum)
24 gpm
Discharge Connection Type
NPT
Priming
Manual
Intake Connection Type
NPT
Operating Pressure (Maximum)
300 psi
Suction Lift (Maximum)
5 ft
Motor Speed (Maximum)
1,000 RPM
Number of Rollers
8

Description

Roller Spray Pump, Discharge Connection Size 1 in, Discharge Connection Type NPT, Flow Rate (Maximum) 24 gpm, Housing Material Cast Iron, Intake Connection Size 1 in, Intake Connection Type NPT, Motor Shaft Rotation CCWSE, Motor Speed (Maximum) 1,000 RPM, Number of Rollers 8, Operating Pressure (Maximum) 300 psi, Priming Manual, Roller Material Polypropylene, Steel, Shaft Outer Diameter 1 in, Suction Lift (Maximum) 5 ft, Overall Length 6.4 in
