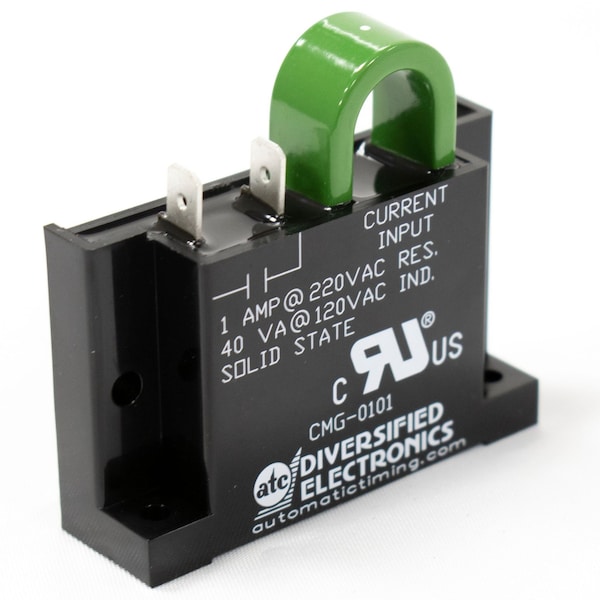

AC Go/No-Go Current Monitor

The CMG-0101 Series is a solid state self powered Current Monitorthat is used to detect the presence of AC current. When the monitoredcurrent exceeds the trip point for longer than 400 mSec., the outputenergizes Pick-up. When the monitored current drops below thetrip point for longer than 400 mSec., the output de-energizes Dropout.No physical connection is required as the line to be monitored ismagnetically coupled by passing the conductor through the protrudingCurrent Transformer of the monitor. No external supply is needed topower the monitor.
