Barb to Bowes Nipple, Barb, 1/2, Brass
Mfr # N4S4-B
Zoro # G1922313
Key Features
Specifications
Product Information
Dimensions
Details
Description

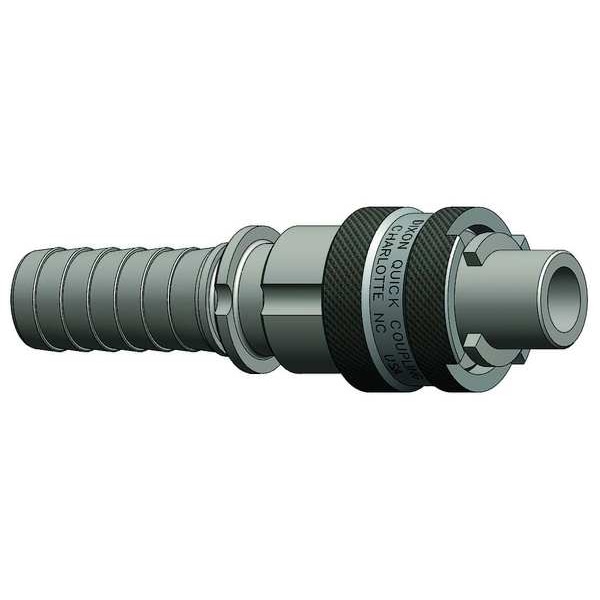

The DIXON - N4S4-B is a hose coupling with a sleeve locking mechanism intended for tool-free connection and disconnection when used with compatible couplers. It is a male plug compatible with Bowes style couplers, intended for use on the end of hoses or pipes. Constructed from brass with zinc plating, this coupling accepts 1/2 in inner diameter hoses via a 1/2 in barbed hose connection. It uses nitrile O-rings to form a seal under specified pressure and temperature conditions and is rated for operation within -40°F to 250°F. The coupling is rated for a maximum working pressure of 300 psi at 70°F ambient temperature and is rated for a maximum flow rate of 5,776.64 L/min.
Key Features:
- Hose barb size: 1/2 in for connecting to compatible hose I.D.
- Coupling size: 1/2 in, matching standard Bowes interchange fittings.
- Material: Brass body with zinc-plated finish for surface protection.
- Connection type: Hose barb with male fitting gender.
- Coupling locking type: Sleeve for secure attachment.
- Seal material: Nitrile providing fluid-tight sealing.
- Maximum flow rate: 5,776.64 L/min indicating fluid throughput capability.
- Maximum working pressure: 300 psi at 70°F ambient temperature.
- Temperature range: -40°F to 250°F.
- Overall length: 4.94 in and maximum outside diameter: 1.44 in.
