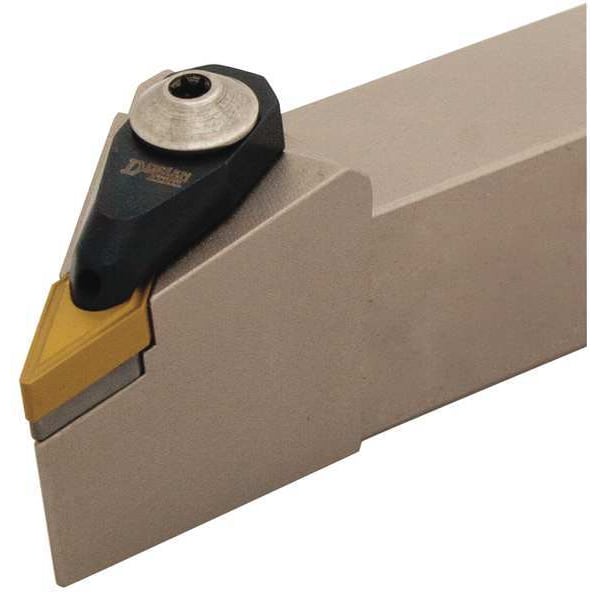

Indexable Boring Bar, AS-24S-ADCLNR-4, 10 in L, High Speed Steel, 80 Degrees Diamond Insert Shape

  • Mfr # 73310153126

  • Zoro # G7946032

product price:
$
486.99
/ea
Free Shipping & Returns

Key Features

Overall Length
10 in
Shank Material
High Speed Steel
Insert Shape
80 Degrees Diamond
Insert Size
432
Shim Screw
SM-M4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
73310153126
Zoro #
G7946032
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
10 in
Insert Size
432
Insert Thickness
0.1875"
Shank Dia.
1-1/2 in
Width Offset
0.89"
Min. Bore Dia.
1.7800 in
Wire Rope Length
10 in
Length
10 in

Details

Item
Indexable Boring Bar
Shank Material
High Speed Steel
Insert Shape
80 Degrees Diamond
ANSI Code
AS-24S-ADCLNR-4
Shim Screw
SM-M4
Clamp Screw
JSCS-04
Shim
S8012P
Mounting Style
Dor-Lock
Lead Angle
11 Degrees
Type
Steel Coolant-Thru
Min. Bore
1.78"
Style
AS-24S-ADCLNR-4
Shank
Round
Clamp
JSLC-HPCTW-4N
Material
Steel
Cutting Direction
Right Hand
Inscribed Circle
0.5"
Rake
Negative
Features
Double-Jet Coolant System
ISO Number
AS-24S-ADCLNR-4
Cutting Application
Boring
Coolant Fed
Coolant Through
Side Cutting Edge Angle
-5 Degrees
Head Material
Steel
Insert Inscribed Circle
1/2 in
Insert Holding Type
Clamp
Compatible Hardware
DC-432 Seat, JSCS-04 Clamp Screw, JSLC-HPCTW-4N Dor-Lock Clamp, JSPN-M6 Chip Flush Plug, TS-5.8-10M1 Seat Screw
Insert Clearance Angle
0 Degrees
Number of Coolant Holes
2
Number of Inserts
1
Insert Style
CNM
Center to Cutting Tip
57/64 in

Description

Indexable Boring Bar, Insert Shape 80 Degrees Diamond, Overall Length 10 in, AS-24S-ADCLNR-4, 57/64 in, DC-432 Seat, JSCS-04 Clamp Screw, JSLC-HPCTW-4N Dor-Lock Clamp, JSPN-M6 Chip Flush Plug, TS-5.8-10M1 Seat Screw, Coolant Through, Boring, Right Hand
