Dranetz Power Qlty Anlz Kit, 500A, HDPQ Guide HDPQ-P-GA500PKG - main

Power Qlty Anlz Kit, 500A, HDPQ Guide

  • Mfr # HDPQ-P-GA500PKG

  • Zoro # G8579392

product price:  $10,109.99
/ea
Free Shipping & Returns

Key Features

Sampling Rate
512 sec/cycle
Phase
4
Includes

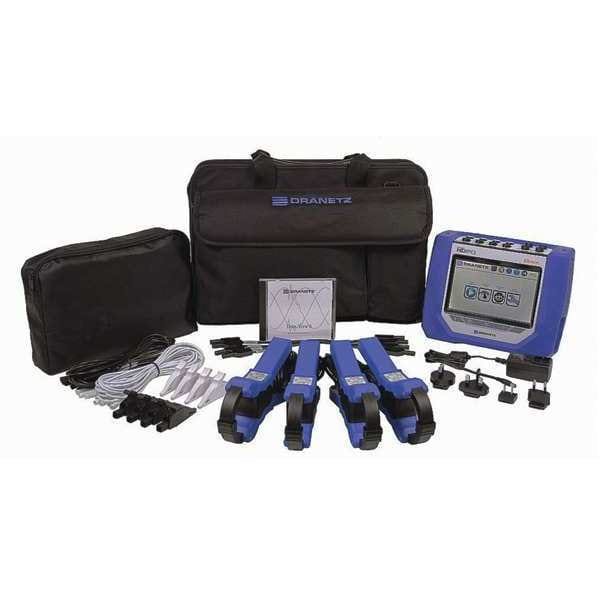

(4) TR2500B CT's, AC Power Supply, Dran-View Ent, Dranetz HDPQ Guide, Soft Carry Case, Voltage Cable Set
Max. Watts
100 TW
Kit Current Capability
10 to 500 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HDPQ-P-GA500PKG
Zoro #
G8579392
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr

Details

Item
Power Quality Analyzer Kit
Sampling Rate
512 sec/cycle
Phase
4
Includes
(4) TR2500B CT's, AC Power Supply, Dran-View Ent, Dranetz HDPQ Guide, Soft Carry Case, Voltage Cable Set
Max. Watts
100 TW
Kit Current Capability
10 to 500 A
Display
Color LCD Touch Screen
Calibration Certificate
NIST
Display Resolution
800 x 480
Max. AC Amps
500 A
Storage
4 GB
Power Factor
0 to 1
Current Accuracy
+/-0.1%
Safety Rating
CAT III 1000V, CAT IV 600V
Peak Capture
Yes
Current Channels
4
Voltage Accuracy
+/-0.1%
Min. Transient Duration
32 mS
Crest Factor
I=3, V=2
Max. DC Voltage
1,000V
AC Response
TRMS
Data Logging
Yes
Calibration Frequency
45 to 65 Hz
Voltage Channels
4
Max. VA
100 TVA
Harmonic Capture Range
63rd
Max. AC Voltage
1,000
Communication Protocol
Ethernet, Optional Bluetooth via USB Adapter, USB, VNC Remote Control, Wi-Fi
IP Rating
IP65
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
122 Degrees F
Data Output Type
Ethernet, Bluetooth, USB, Wi-Fi
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Power Source
AC Adapter, Battery
Calibration Certificate Included
NIST Not Traceable
Maximum AC Current Measured
500 A
Testing Functions
Active Energy, Apparent Power, Current, Demand, Energy, Power, Power Factor, Reactive Power, Voltage

Description

Power Quality Analyzer Kit, CAT Safety Rating CAT III 1000V, CAT IV 600V, Calibration Certificate NIST, Current Channels 4, Includes (4) TR2500B CT's, AC Power Supply, Dran-View Ent, Dranetz HDPQ Guide, Soft Carry Case, Voltage Cable Set, Maximum AC Current Measured 500 A, Maximum DC Current Measured Not Applicable, Peak Capture Yes, Power Factor 0 to 1, Testing Functions Active Energy, Apparent Power, Current, Demand, Energy, Power, Power Factor, Reactive Power, Voltage, Voltage Channels 4
