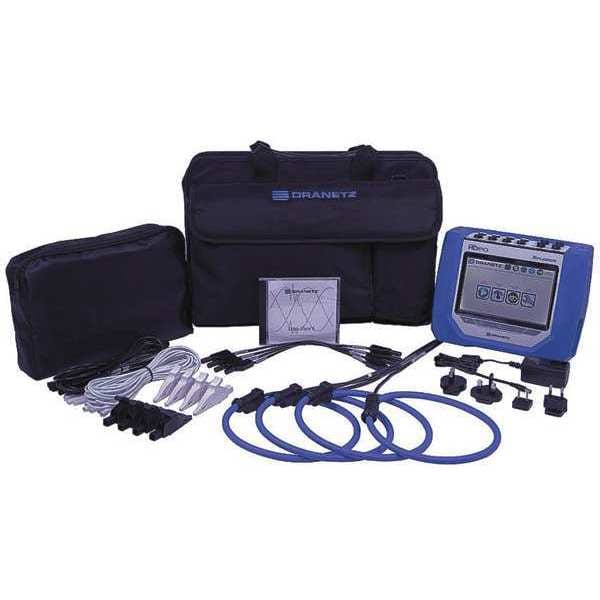

Dranetz Power Qlty Anlz Kit, 6000A, HDPQ Xplorer HDPQ-P-XAFLEX6KPKG - main

Power Qlty Anlz Kit, 6000A, HDPQ Xplorer

  • Mfr # HDPQ-P-XAFLEX6KPKG

  • Zoro # G8579505

product price:  $18,549.99
/ea
Free Shipping & Returns

Key Features

Sampling Rate
512 sec/cycle
Phase
4
Includes
(1) DRANFLEX6000XLB24 FLEX CT, (1) DRANFLEX6003XLB24 3 Phase FLEX CT, AC Power Supply, Dran-View Ent, Dranetz HDPQ Xplorer, Soft Carry Case, Voltage Cable Set
Max. Watts
100 TW
Kit Current Capability
6 to 6,000 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HDPQ-P-XAFLEX6KPKG
Zoro #
G8579505
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr

Details

Item
Power Quality Analyzer Kit
Sampling Rate
512 sec/cycle
Phase
4
Includes
(1) DRANFLEX6000XLB24 FLEX CT, (1) DRANFLEX6003XLB24 3 Phase FLEX CT, AC Power Supply, Dran-View Ent, Dranetz HDPQ Xplorer, Soft Carry Case, Voltage Cable Set
Max. Watts
100 TW
Kit Current Capability
6 to 6,000 A
Display
Color LCD Touch Screen
Min. Transient Duration
32 mS
Power Factor
0 to 1
Crest Factor
I=3, V=2
Voltage Accuracy
+/-0.1%
Storage
4 GB
Max. DC Voltage
1,000V
AC Response
TRMS
Calibration Frequency
45 to 65 Hz
Peak Capture
Yes
Safety Rating
CAT III 1000V, CAT IV 600V
Data Logging
Yes
Current Channels
4
Calibration Certificate
NIST
Max. VA
100 TVA
Harmonic Capture Range
63rd
Max. AC Voltage
1,000
Max. AC Amps
6,000 A
Current Accuracy
+/-0.1%
Voltage Channels
4
Display Resolution
800 x 480
Communication Protocol
Ethernet, Optional Bluetooth via USB Adapter, USB, VNC Remote Control, Wi-Fi
IP Rating
IP65
Maximum Operating Temperature
122 Degrees F
Minimum Operating Temperature
32 Degrees F
Power Source
AC Adapter, Battery
Data Output Type
Ethernet, Bluetooth, USB, Wi-Fi
Testing Functions
Active Energy, Apparent Power, Current, Demand, Energy, Power, Power Factor, Reactive Power, Voltage
Maximum AC Current Measured
6,000 A
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Calibration Certificate Included
NIST Not Traceable

Description

Power Quality Analyzer Kit, Calibration Certificate NIST, Current Channels 4, Includes (1) DRANFLEX6000XLB24 FLEX CT, (1) DRANFLEX6003XLB24 3 Phase FLEX CT, AC Power Supply, Dran-View Ent, Dranetz HDPQ Xplorer, Soft Carry Case, Voltage Cable Set, Peak Capture Yes, Power Factor 0 to 1, Voltage Channels 4, Calibration Frequency 45 to 65 Hz, Communication Protocol Ethernet, Optional Bluetooth via USB Adapter, USB, VNC Remote Control, Wi-Fi, Crest Factor I=3, V=2, Current Accuracy +/-0.1 Percent
