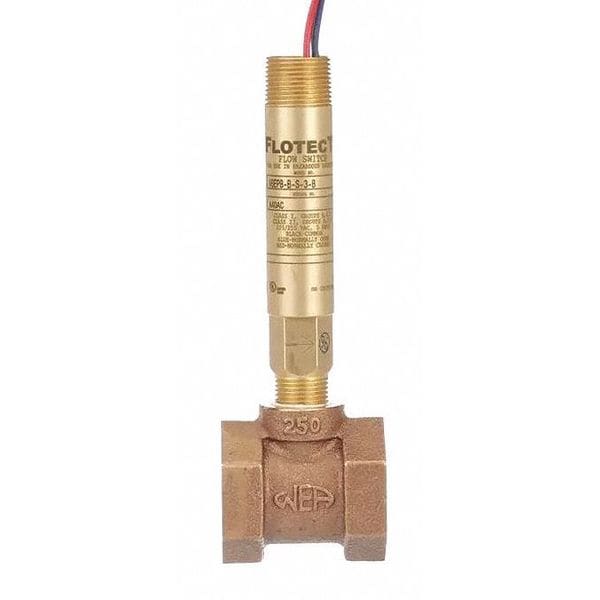

Mini-size flow switch, brass upper and lower body, 1/2" NPT, brass tee.
Mfr # V6EPB-B-S-1-B
Zoro # G403473675
product price:Â
$
356.99
/ea
Free Shipping & Returns
Key Features
Switch Type
SPDT
Phase
Single
Overall Length
3.6 in
Body Material
Brass
Switch Enclosure
NEMA 4
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- V6EPB-B-S-1-B
- Zoro #
- G403473675
- UPC #
- -
- Country of Origin
- United States
- Switch Type
- SPDT
- Item
- Flow Switch
- Phase
- Single
- Body Material
- Brass
- Switch Enclosure
- NEMA 4
- Standards
- ATEX, CE, CSA Certified, IECEx, KTL, UL Listed
- Contact Rating (AC)
- 1 A @ 125V (MV Option), 5 A @ 125/250V (CSA, ATEX and IECEx Models), 5 A @ 125/250V (MT Option), 5 A @ 125/250V (UL Models)
- Flow Switch Type
- Paddle
- Frequency
- 50 Hz, 60 Hz
- Set Point Configuration
- Adjustable
- Housing Material
- Brass
- Media Temperature - Maximum
- 220 Degrees F
- Contact Rating (DC)
- 3 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models)
- Ambient Temperature - Minimum
- -4 Degrees F
- Hazardous Location Specification
- Class I, Div 1 and 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G
- Media Temperature - Minimum
- -4 Degrees F
- Switch Position
- Normally Closed, Normally Open
- Wetted Material
- 301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Brass, Ceramic, Cast Iron, Steel
- Connection Type
- NPT
- Ambient Temperature - Maximum
- 167 Degrees F
Description
Flow Switch, Ambient Temperature - Maximum 167 Degrees F, Ambient Temperature - Minimum -4 Degrees F, Connection Size 1/2 in, Connection Type NPT, Contact Rating (AC) 1 A @ 125V (MV Option), 5 A @ 125/250V (CSA, ATEX and IECEx Models), 5 A @ 125/250V (MT Option), 5 A @ 125/250V (UL Models), Contact Rating (DC) 3 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models), Filter Rating - Maximum Not Applicable, Flow Rate - Maximum Not Applicable
