  9. SPDT Tank Liquid Level Switch Selectable 240VAC 300 psi
Shop All Level Switches
Madison

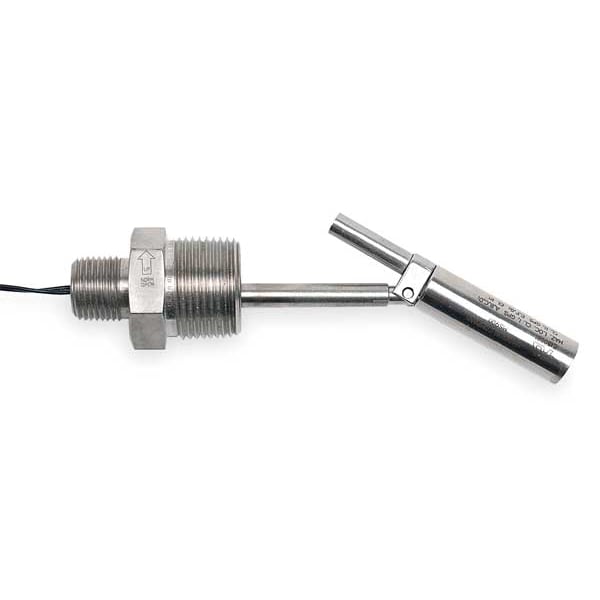

SPDT Tank Liquid Level Switch Selectable 240VAC 300 psi

product price: $152.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 240VAC
  • Max. Pressure 300 psi
  • Float Switch Float Material Stainless Steel
  • Float Length 2 in
  • VA Rating 30
See all product information

Product Information

Dimensions

Float Length 2 in
Float Dia. 0.63 in
Conduit Size 1/2 in x 1 in
Overall Length 4.6 in
Tank Connection Size 1/2 in x 1 in NPT
Stem Length 4.6 in
Float Diameter 0.63 in
Stem Thread Size 1 in x 1/2 in NPT

Details

Voltage 240VAC
Max. Pressure 300 psi
Float Switch Float Material Stainless Steel
VA Rating 30
Electrical Connections 22 ga PTFE Coated 24 in Leads
Operating Temp. Range 392 Degrees F Max.
Float Switch Contact Form SPDT
Item Alternator Closed Liquid Level Switch
Max. Voltage 240 V
Body Material 316 Stainless Steel
Float Specific Gravity 0.6
Max. Current 0.28 A
Stem Material 316 Stainless Steel
Mounting Side
Float Material 316 Stainless Steel
Switch Function Selectable
Standards CE, CSA, NSF, UL Listed
Contact Form SPST
Series M5900
Features High-Pressure, High-Temperature
Product Type Alternator Closed Liquid Level Switch
Minimum Media Specific Gravity 0.75
Proof Pressure 300 psi
Electrical Connection Lead Wires
Operating Temperature - Maximum 392 Degrees F
Voltage Rating - Maximum 120 V DC, 240 V AC
Current Rating - Maximum 0.28 A

Description

Alternator Closed Liquid Level Switch, Switch Function Selectable, Side Mounting, Tank Connection Size 1/2 in x 1 in NPT, Max. Pressure 300 psi, VA Rating 30, Operating Temp. Range 392 Degrees F Max., Overall Length 4.6 in, Float Material 316 Stainless Steel, Float Length 2 in, Float Dia. 0.63 in, Stem Material 316 Stainless Steel, Stem Length 4.6 in, Height -, Width -, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material 316 Stainless Steel, Conduit Size 1/2 in x 1 in
