Shop DWYER INSTRUMENTS

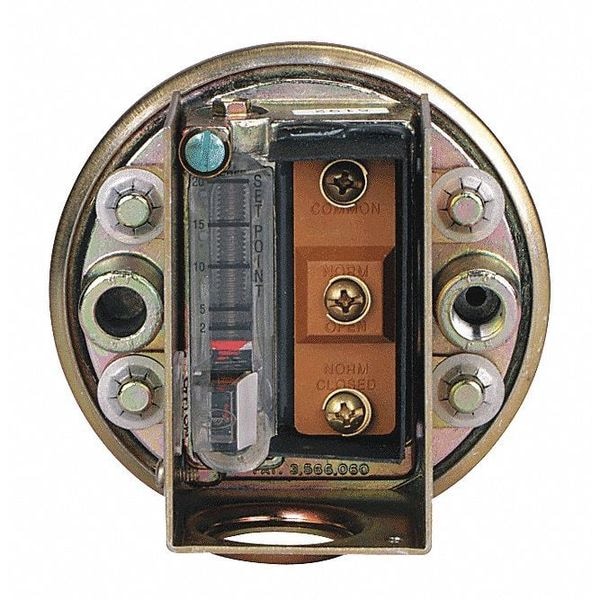

Pressure Switch, Standard, SPDT, 1/4" MNPT, 1/8" FNPT, 4 to 20 in H2O Range

  • Mfr # 1996-20

  • Zoro # G3219627

product price:
$
191.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/4 in MNPT, 1/8 in FNPT
Range
4-20" w.c.
Factory On Setting
4"wc
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1996-20
Zoro #
G3219627
UPC #
-
Country of Origin
United States

Details

Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/4 in MNPT, 1/8 in FNPT
Range
4-20" w.c.
Factory On Setting
4"wc
Factory Off Setting
20"wc
Standards
CE Listed, CSA, FM, UL Listed
Features
Visible set point and on-off indicator simplifies operation and trouble shooting; Compact size and low cost make it ideal for gas fired or gas equipment OEM applications
Electrical Connection
3 screw type, common, normally open, normally closed.
Series
1996
Process Connection
1/8" female NPT or 1/4" male NPT.
Agency Approvals
CE, CSA, FM, UL.
Mounting Orientation
Diaphragm in horizontal position. Consult factory for other position orientations.
Set Point Adjustment
Screw type with visible indicator, inside conduit enclosure.
Temperature Limits
32 to 110°F (0 to 43.3°C). -30 to 110°F (-34.4 to 43.3°C) for dry gas or dry air.
Switch Type
SPDT.
Service
Air, natural & manufactured gas, LP gas.
For Fuel Type
LP, Natural Gas
Gas Connection
1/4" Male NPT, 1/8" Female NPT
Weight
1 lb
Maximum Control Temperature
110 Degrees F
Minimum Control Temperature
32 Degrees F
Product Type
Gas Pressure Switch

Description

Gas Pressure Switch, Product Type Gas Pressure Switch, For Fuel Type LP, Natural Gas, Maximum Control Temperature 110 Degrees F, Minimum Control Temperature 32 Degrees F, Gas Connection 1/4 In. Male NPT, 1/8 In. Female NPT, Standards CE Listed, CSA, FM, UL Listed, Series 1996, Weight 1 lb
