Shop DWYER INSTRUMENTS

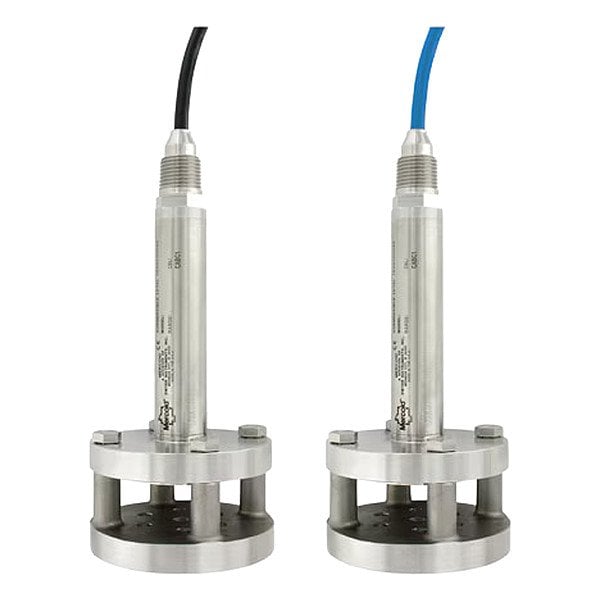

Submersible Level Transmitter, 3.44" Dia.

  • Mfr # PBLTX-20-60

  • Zoro # G016437897

product price:
$
1,629.99
/ea
Free Shipping & Returns

Key Features

Series
PBLTX
Loop Resistance - Maximum
900 ohm
Overall Height
7.91 in
Standards
ATEX: II 1 G Ex ia IIC T4 Ga and II 1 D Ex ia IIIC T135C Da (According to Control Drawing 001833-44), CE, Class II, Div. 1, Groups E, F, G, Class III, Div. 1, cULus intrinsically safe for Class I, Div. 1, Groups A, B, C, D
Operating Temperature - Maximum
176 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PBLTX-20-60
Zoro #
G016437897
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
7.91 in
Cable Length
60 ft
Sensor Length
7.75 in
Measuring Depth - Maximum
275 ft
Overall Diameter
3.44 in
Process Connection Size
1/2 in

Details

Item
Submersible Level Transmitter
Series
PBLTX
Loop Resistance - Maximum
900 ohm
Standards
ATEX: II 1 G Ex ia IIC T4 Ga and II 1 D Ex ia IIIC T135C Da (According to Control Drawing 001833-44), CE, Class II, Div. 1, Groups E, F, G, Class III, Div. 1, cULus intrinsically safe for Class I, Div. 1, Groups A, B, C, D
Operating Temperature - Maximum
176 Degrees F
Electrical Protection
No
Accuracy
+/-0.25% Full Scale
IP Rating
IP68
Response Time
50 msec
Operating Temperature - Minimum
-4 Degrees F
Thermal Error
+/-0.02%
Process Connection Type
NPT
Electrical Connection
Cable & Wire Leads
Seal Material
Fluoroelastomer
Tip Design
Bird Cage
Housing Material
316 Stainless Steel
Pressure Measurement - Minimum
0 psi
Cable Coating
ETFE
Input Voltage
10 to 28V DC
Pressure Measurement - Maximum
20 psi
Output Power
4 to 20mA DC

Description

Submersible Level Transmitter, Tip Design Bird Cage, Accuracy +/-0.25 Percent Full Scale, Cable Length 60 ft, Cable Coating ETFE, Process Connection Size 1/2 in, Process Connection Type NPT, Sensor Length 7.75 in, Electrical Protection No, Series PBLTX, Housing Material 316 Stainless Steel
