Shop DWYER INSTRUMENTS

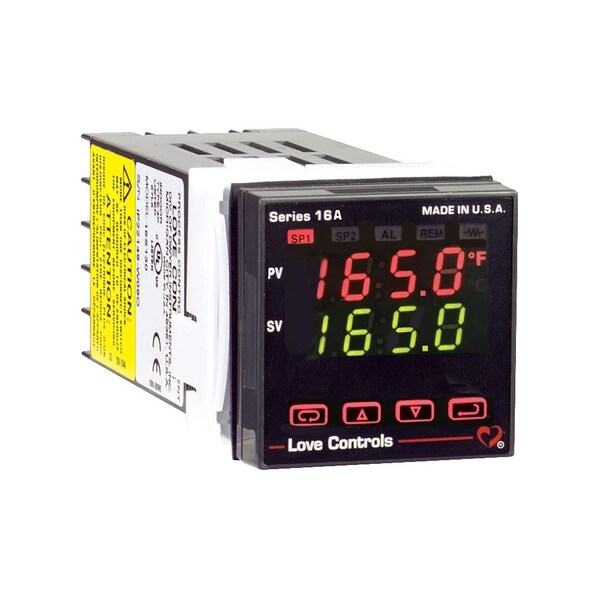

Temperature/Process controller with 15 VDC output

  • Mfr # 16A2020
  • Zoro # G310113664
product price:
$
571.99
/ea
Free Shipping & Returns

Key Features

Power Consumption
5 VA maximum.
Display
Two four-digit LED displays, 0.3 in (7.62 mm) high.
Accuracy
±0.25% of span ±1 least significant digit.
Control Output Ratings
SSR: 2.0 A at 240 VAC resistive at 77°F (25°C). De-rates to 1.0 A at 130°F (55°C). Minimum load of 100 mA. DC SSR: 1.75 A at 32 VDC maximum. Relay: SPST, 3A at 240 VAC resistive, 1.5 A @ 240 VAC inductive. Pilot Duty rating: 250 VA, 2 A @ 120 VAC, 1 A @ 240 VAC. Alarm Relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC inductive. Pilot Duty Rating: 240 VA, 2 A @ 120 VAC or 1 A @ 240 VAC. Switched Voltage: 15 VDC at 20 mA. Proportional Current: 0 to 20 mADC, scalable, into 600 ohms maximum.
Front Panel Rating
NEMA 4X (IP66).
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16A2020
Zoro #
G310113664
UPC #
-
Country of Origin
United States

Details

Power Consumption
5 VA maximum.
Display
Two four-digit LED displays, 0.3 in (7.62 mm) high.
Accuracy
±0.25% of span ±1 least significant digit.
Control Output Ratings
SSR: 2.0 A at 240 VAC resistive at 77°F (25°C). De-rates to 1.0 A at 130°F (55°C). Minimum load of 100 mA. DC SSR: 1.75 A at 32 VDC maximum. Relay: SPST, 3A at 240 VAC resistive, 1.5 A @ 240 VAC inductive. Pilot Duty rating: 250 VA, 2 A @ 120 VAC, 1 A @ 240 VAC. Alarm Relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC inductive. Pilot Duty Rating: 240 VA, 2 A @ 120 VAC or 1 A @ 240 VAC. Switched Voltage: 15 VDC at 20 mA. Proportional Current: 0 to 20 mADC, scalable, into 600 ohms maximum.
Front Panel Rating
NEMA 4X (IP66).
Agency Approvals
UL E83725, CE.

Description

Temperature/Process controller with 15 VDC output
