Shop DYNAQUIP CONTROLS

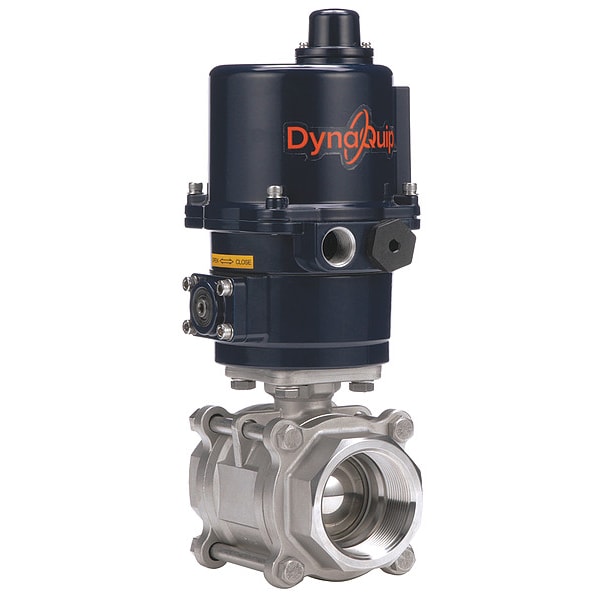

2" FNPT Stainless Steel Electronic Ball Valve 2-Way

  • Mfr # E3S28AJE07

  • Zoro # G1834287

product price:
$
1,348.99
/ea
Free Shipping & Returns

Key Features

Body Material
316 Stainless Steel
Body Style
2-Way
Max. Operating Pressure Differential
500 psi
Voltage
115V AC
Connection Type
FNPT x FNPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
E3S28AJE07
Zoro #
G1834287
UPC #
649848037009
Country of Origin
Taiwan, Province of China
Body Material
316 Stainless Steel
Body Style
2-Way
Max. Operating Pressure Differential
500 psi
Voltage
115V AC
Connection Type
FNPT x FNPT
Temp. Range
-4 Degrees to 392 Degrees F
Item
Electrically Actuated Two-Way Ball Valve
Ball Material
316 Stainless Steel
Port
Full
Stem Material
316 stainless steel
Ambient Temp. Range
-22 Degrees to 149 Degrees F
Mount
Direct
Stem Type
Blowout Resistant
Seat Material
RPTFE
Max. Pressure
1000 psi CWP
Valve Structure
3-Piece
Max. Steam Pressure
150 psi WSP
Standards
ASTM A351-CF8M, ISO5211, NEMA 4, NEMA 4X
Ball Valve Product Group
Actuated
Body Seal Material
PTFE/Viton
Ball Valve Basic Body Material
Stainless Steel
Seal Material
PTFE, FKM
Maximum Current
5 A
Manufacturer Warranty
2 yr
Fail Safe Position
Fail Last
Maximum Pressure - Operating
1,000 psi
Operating Temperature - Minimum
-4 Degrees F
Coefficient of Volume (Cv)
486
Maximum Pressure - Combustible Gas
Not Rated
Actuator Series
MA7
Ball Port Style
Full Port
Actuator Motor Type
Reversing
Maximum Pressure - Steam
150 psi
Connection Type - Side 2
NPT
Actuator Duty Cycle
50 %
Included Mounting
ISO 5211 Actuator Mounting Pad
Actuator Ambient Temperature - Maximum
140 Degrees F
Actuator Features
Auxiliary Limit Switch, Manual Override, Position Indicator
Connection Gender - Side 2
Female
Maximum Operating Pressure Differential
300 psi
IP Rating
IP66
Valve Body Style
Straight
Connection Gender - Side 1
Female
3-A Standard Compliance
Not Rated
For Media
Compressed Air, Natural Gas, Oil
Actuator Ambient Temperature - Minimum
10 Degrees F
NEMA Enclosure Rating
4X
Valve Ways
2-Way
Operating Temperature - Maximum
392 Degrees F
Actuator Operation
90 Degrees
Valve Construction
Three-Piece
Connection Type - Side 1
NPT
Actuator Cycle Time - 90 Degrees
27 sec
Valve Series
E3S

Description

Electrically Actuated Two-Way Ball Valve, Ball Material 316 Stainless Steel, Nominal Valve Size 2 in, Maximum Pressure - Operating 1,000 psi, Actuator Operation 90 Degrees , Valve Body Style Straight, Seat Material RPTFE, Seal Material PTFE, FKM, Voltage 115V AC, Fail Safe Position Fail Last, IP Rating IP66, Actuator Cycle Time - 90 Degrees 27 sec, Valve Construction Three-Piece, Actuator Features Auxiliary Limit Switch, Manual Override, Position Indicator, Connection Gender - Side 1 Female
