Shop EATON BUSSMANN

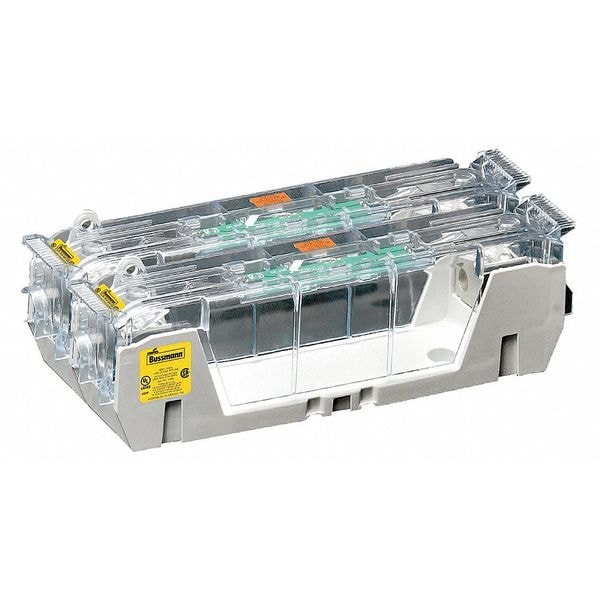

Open Fuse Block, 70 to 100A Amp Range, 600V AC/DC Volt Rating, 2 Poles, Box Lug

  • Mfr # RM60100-2CR
  • Zoro # G2590485

product price:
$
147.99
/ea
Free Shipping & Returns

Key Features

UL Class
R
Series
RM
Number of Poles
2
Amp Range
70 to 100A
Connector Type
Box Lug
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
RM60100-2CR
Zoro #
G2590485
UPC #
051712391221
Country of Origin
Mexico
Item
Open Fuse Block
UL Class
R
Series
RM
Number of Poles
2
Amp Range
70 to 100A
Voltage Rating
600V AC, 300V DC
Connector Type
Box Lug
Mounting Style
Bolt-Down, DIN Rail
Visual Indication
Non-Indicating
Fuse Block Style
Rejection
Fuse Block Design
Open
Body Material
Thermoplastic
Fuse Type
Industrial
Features
Short Circuit and Overload Protection
Fuse Holder Code
R
Standards
CSA Certified, UL Listed
For Fuse Series
FRN, FRS, KTN-R, KTS-R, LPN, LPS
Wire Range
8 AWG, 6 AWG to 4 AWG, 14 AWG to 10 AWG
Fits Fuse Type
Class R
Weight
.65 lb
Fits Fuse Block Style
Rejection
DC Voltage Rating
300 V DC
Current - Maximum
100 A
AC Voltage Rating
600 V AC
Current - Minimum
61 A

Dimensions

Wire Size
14 to 1/0 AWG
Length
9.20 in
Width
4 in
Height
2.80 in
For Fuse Size
5-7/8 in L x 1-1/16 in dia
For Fuse Length
7 7/8 in
Wire Size - Minimum
14 AWG
For Fuse Diameter
1 1/8 in
Overall Length
9.2 in
Wire Size - Maximum
1/0 AWG
Overall Width
4 in
Overall Height
2.8 in
Wire Rope Length
9.2 in
Fits Chest Size
Short Circuit and Overload Protection

Description

Fuse Block, Fits Fuse Type Class R, Fuse UL Class R, 61 to 100 A, Number of Poles 2, 600V AC/300V DC, For Fuse Size 5 7/8 in L x 1 1/16 in dia, Compatible Fuse Series A6D-R, A6K-R, FRS-R, KLSR, KTS-R, KWS-R, LLSRK, LPS-RK, TRS-R, Series RM, Non-Indicating, Rejection, Fuse Block Design Open, Wire Range 14 to 1/0 AWG, Mounting Style Bolt-Down, DIN Rail, Body Material Thermoplastic, Connector Type Box Lug, Height 2.8 in, Width 4 in, Length 9.2 in, Features Short Circuit and Overload Protection
