  11. Surge Protection Device, 1 Phase, 48V, 1 Poles, 2 Wires

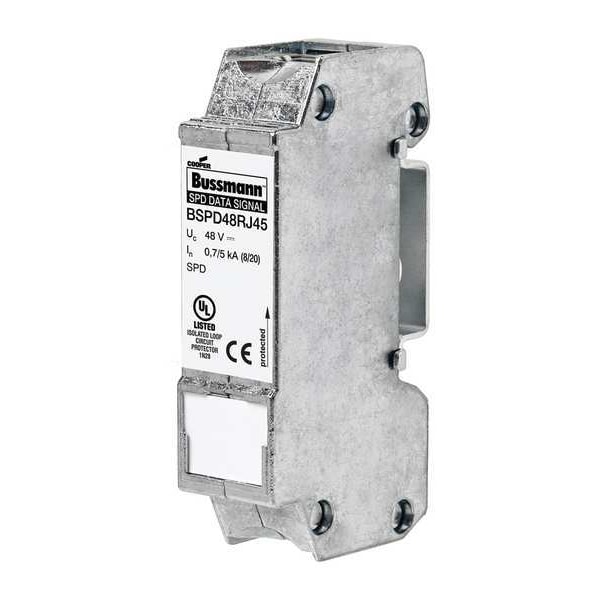

Eaton Bussmann Surge Protection Device, 1 Phase, 48V, 1 Poles, 2 Wires BSPD48RJ45 - main

Surge Protection Device, 1 Phase, 48V, 1 Poles, 2 Wires

  • Mfr # BSPD48RJ45

  • Zoro # G6128306

product price: $316.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
DIN Rail
Phase
1
Voltage
48V
Number of Poles
1
Voltage Protection Rating
190V (L-L), 600V (L-G)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BSPD48RJ45
Zoro #
G6128306
UPC #
051712398978
Country of Origin
Germany

Dimensions

Length
2.99 in
Depth
1.42 in
Width
3/4 in

Details

Item
Surge Protection Device
Mounting Style
DIN Rail
Phase
1
Voltage
48V
Number of Poles
1
Voltage Protection Rating
190V (L-L), 600V (L-G)
Number of Wires
2 Wires
Modes of Protection
L-G, L-L
Max. Surge Current Per Mode
10kA
Max. Surge Current per Mode
10 kA
Max. Surge Current per Phase
10 kA
Nominal Discharge Current
150 A
Modular
Yes
Filtering
No
Max. Continuing Operating Voltage
48V DC
IP Rating
IP20
Enclosure Material
Zinc
Wire Gauge
28 to 12 AWG
Modular / Nonmodular
Modular
Standards
EN 61643-21, IEC 61643-21
Min. Operating Temp.
-40 Degrees F
Color
Gray
Amps
1 A
System Connection
Series
Max. Operating Temp.
176 Degrees F
Basic Material
Metallic
Type
Surge protection device
Includes Surge Counter
No
Used with
Data signal
Certifications
UL 94V0
Operating Temperature
-40 to 80 °C
Mounting Method
DIN rail

Description

Data Surge Protection Device, Metallic, Gray, Amps 1 A, Depth 1.42 in, Enclosure Material Zinc Die Casting
