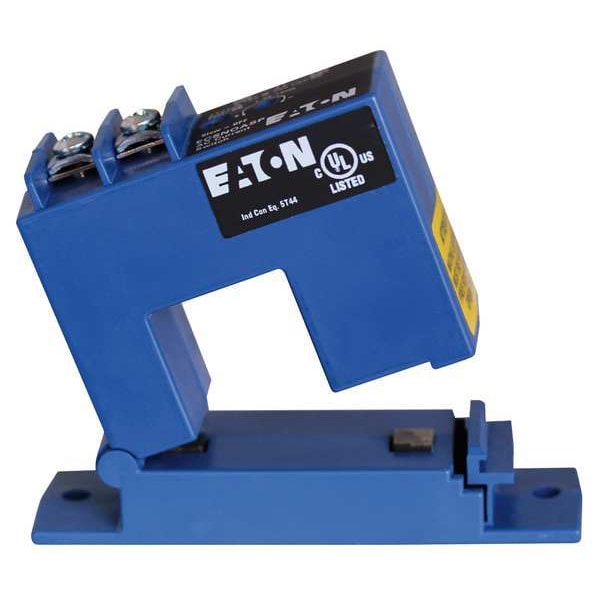

Eaton Current Sens Rly, 1.75to150A, Self Powered ECSNOASP - main

Current Sens Rly, 1.75to150A, Self Powered

  • Mfr # ECSNOASP

  • Zoro # G8984997

product price: $236.99
/ea
Free Shipping & Returns

Key Features

Input or Control Voltage
Self Powered
AC Contact Rating - Relay
0.15A @ 240V
DC Contact Rating - Relay
0.15A @ 240V
Mounting - Relay
Surface
Contact Form - Relay
SPST-NO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ECSNOASP
Zoro #
G8984997
UPC #
786685120935
Country of Origin
United States

Dimensions

Body Height - Relay
2.25 in
Body Depth - Relay
1.19 in
Body Width - Relay
3.53 in
Overall Height - Relay
2.5 in
Body Width
1.19 in
Overall Depth
2.25 in
Sensing Hole Diameter
0.85 in
Body Depth
3.53 in
Body Height
2.25 in
Product Width
1.19 in
Product Length/Depth
3.53 in
Product Height
2.25 in

Details

Item
Adjustable Current Sensing Relay
Input or Control Voltage
Self Powered
AC Contact Rating - Relay
0.15A @ 240V
DC Contact Rating - Relay
0.15A @ 240V
Mounting - Relay
Surface
Contact Form - Relay
SPST-NO
Sensing Amp Range
1.75 to 150.00A
Trip Point
1.75 to 150 A
Trip Delay
0.12 sec
Core Type - Relay
Split
Contact Form
SPST-NO
Item - Relay
Current Sensing Relay
Type of Output
Solid State
Electrical Connection
Screw Terminal
Contact Amps
0.15A
Sensor Opening
0.85 in
Mounting
Surface
Core Type
Split
Status Indicator
LED Indicator
Max. Inrush Current
150 A
For Use With
Sensors
Weight
0.33 lb
Operating Current
150 A
Maximum Operating Temperature
122 Degrees F
Contact Rating (AC)
0.15 A @ 240V
Minimum Operating Temperature
-58 Degrees F
Standards
RoHS Compliant, UL Listed
Mounting Style
Surface
Frequency
100 Hz
Number of Pins
2
Trip Point Type
Adjustable
Monitored Parameters
Overcurrent, Undercurrent
Wire Gauge
14 AWG
Current Rating
150 A
Housing Material
Plastic
Adjustment Method
Switch
Contact Rating (DC)
0.15 A @ 240V
Contact Rating
0.15A at 240 Vac/dc
Connection
Screw terminal
Operating Temperature
-58° to 122°F
Enclosure material
UL94 V0 flammability rated plastic
Contact configuration
SSR
AC current - max
150 A
LED indicator
LED indicator
Switch type
Adjustable 1.75-150 A setpoint
Product Name
Eaton ECS series CurrentWatch AC current switch

Description

Adjustable Current Sensing Relay, Contact Form SPST-NO, Contact Rating (AC) 0.15 A @ 240V, Contact Rating (DC) 0.15 A @ 240V, Core Type Split, Current Rating 150 A, Input Voltage Not Applicable, Monitored Parameters Overcurrent, Undercurrent, Mounting Style Surface, Number of Pins 2, Trip Point 1.75 to 150 A, Trip Point Type Adjustable, Adjustment Method Switch, Electrical Connection Screw Terminal, Sensing Hole Diameter 0.85 in, Status Indicator LED Indicator, Wire Gauge 14 AWG
