Shop EATON

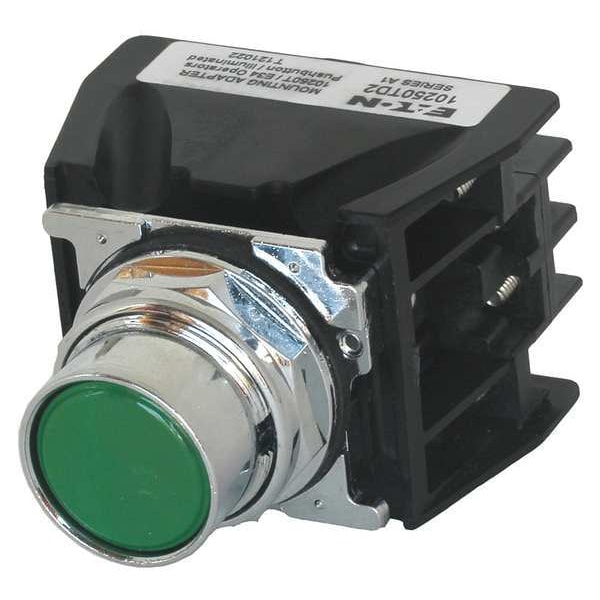

Hazardous Location Push Button, 30 mm, 1NO/1NC, Green

  • Mfr # 10250T706G

  • Zoro # G8736567

product price:
$
193.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Green
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
10250T706G
Zoro #
G8736567
UPC #
782114504390
Country of Origin
Dominican Republic
Item
Hazardous Location Push Button
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Green
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
CE, CSA, UL Listed
Includes
Drainage Holes to Prevent Moisture Build-Up, Grounding Nibs Designed to Bite Through Most Enclosure Coatings
NEMA Rating
12, 13, 3, 3R, 4, 4X
NEMA Contact Rating Designation
A600 and Q300
Number of Operators
1
Safety Rating
Class 1, Div 2, Groups B,C, D (NEC), Class 1, Zone 2, IIB and H2 (NEC 505)
Color
Green
Type of Operator
Flush Push Button
Bezel
Metal
IP Rating
IP65
Contact Form
1NO/1NC
Contact Rating
10A @ 600V AC, 2.5A @ 250V DC
Features
Factory Sealed, Drainage Holes, Grounding Nibs
Legend
Blank
Bezel Material
Zinc Die Cast
Rating
NEMA 3
Series
10250T
Type
Pushbutton
AC Contact Rating
10 A @ 600 V
DC Contact Rating
2.5 A @ 250 V
Degree of protection
NEMA 3R
Contact configuration
1 NO-1 NC
Operating mode
Momentary
Compliances
CE Marked
Actuator Color
Green
Actuator Material
Plastic
Certifications
CSA Certified
Illumination
Non-illuminated
Mounting method
Flush
Product Name
Eaton 10250T pushbutton
Hazardous Location Specification
Class I, Div 2, Group B, C, D
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Resistance Properties
Oil and Grease Resistant, Watertight
Operator Material
Metal
Number of Indicator Lights
0
Operating Temperature - Maximum
140 Degrees F
Mechanical Operating Durability
1.00 x 10^7
Operating Temperature - Minimum
32 Degrees F
Product Type
Push Button Operators

Description

Hazardous Location Push Button, 30 mm, Momentary Action, Flush Push Button Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Metal, Color Green, Contact Rating 10A @ 600V AC, 2.5A @ 250V DC, NEMA Contact Rating Designation A600 and Q300, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CE, CSA, UL Listed, Terminal Connection Screw Clamp, Features Factory Sealed, Drainage Holes, Grounding Nibs
