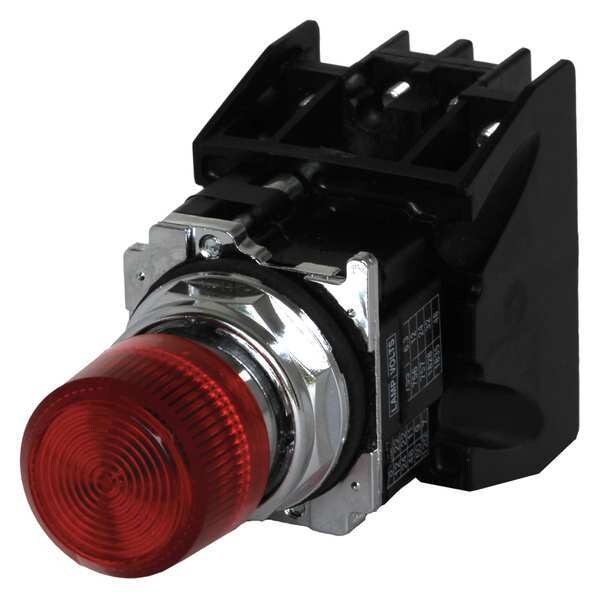

Eaton Illuminated Button w/Contacts, 120VAC 10250T828RD2A - main

Illuminated Button w/Contacts, 120VAC

  • Mfr # 10250T828RD2A

  • Zoro # G8737057

product price: $306.99
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
Color
Red
Action
Momentary
Lamp Type
LED
Type of Operator
Extended Illuminated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250T828RD2A
Zoro #
G8737057
UPC #
782114538173
Country of Origin
United States

Dimensions

Size
30 mm
Length
6 in
Width
4 in
Height
4 IN
Overall Height
4 in
Overall Width
4 in
Overall Depth
6 in
Manufacturer Warranty Length
1 yr
Panel Cutout Diameter
30 mm

Details

Item
Illuminated Push Button
Voltage
120V AC
Color
Red
Action
Momentary
Lamp Type
LED
Type of Operator
Extended Illuminated
Head Material
Metal
Terminal Connection
Screw Clamp
Contact Form
1NO/1NC
Bezel
Metal
Lamp Module Voltage
120V AC
Lamp Module Type
Full Voltage
NEMA Rating
12, 13, 3, 3R, 4, 4X
Standards
CE
NEMA Contact Rating Designation
A600 and Q300
Lamp Voltage
120V AC
Number of Operators
1
IP Rating
IP65
Contact Rating
10A @ 600V AC, 2.5A @ 250V DC
Safety Rating
Class 1, Div 2, Groups B,C, D (NEC), Class 1, Zone 2, IIB and H2 (NEC 505)
Product Type
Push Button Operators
Legend
Blank
Type
Class I Division 2
Illumination
Illuminated
Special Features
10250T series
Compliances
CE Marked
Contact Configuration
1 NO-1 NC
Actuator Material
Plastic
Series
10250T
Lamp Voltage - Min
120 VAC
Light Unit Type
LED, full voltage
Actuator
Extended
Rating
NEMA 4;NEMA 4X;NEMA 13;NEMA 12;NEMA 3R;NEMA 3;NEC Class I Division 2, Groups B, C and D
Product Name
Eaton 10250T pushbutton
Light Unit Voltage
6 Vac/dc
Lamp Voltage - Max
120 VAC
Application
Pushbutton
Operating Temperature - Maximum
140 Degrees F
Operator Illumination
Illuminated
Hazardous Location Specification
Class I, Div 2, Group B, C, D
DC Contact Rating
2.5 A @ 250 V
Bezel Material
Zinc Die Cast
Resistance Properties
Oil and Grease Resistant
Push Button Style
Extended
Mechanical Operating Durability
1.00 x 10^7
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
AC Contact Rating
10 A @ 600 V
Lamp Voltage - Maximum
6 V AC/DC
Features
Factory Sealed, Drainage Holes, Grounding Nibs
Operating Temperature - Minimum
32 Degrees F
Number of Indicator Lights
0
Head Color
Red
Operator Material
Metal

Description

Illuminated Push Button, 30 mm, Momentary Action, Extended Illuminated Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Metal, Color Red, Contact Rating 10A @ 600V AC, 2.5A @ 250V DC, NEMA Contact Rating Designation A600 and Q300, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CE, Terminal Connection Screw Clamp, Features Factory Sealed, Drainage Holes, Grounding Nibs
