Shop EATON

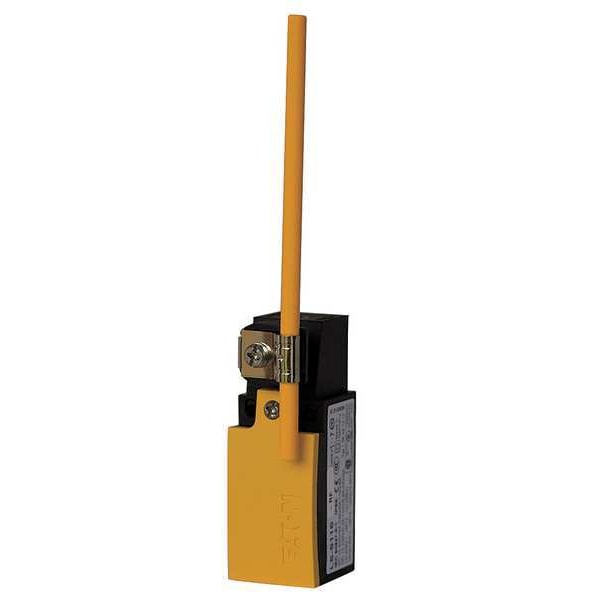

Limit Switch, Adjustable Rod, Rotary, 1NC/1NO, 4A at 400V AC, Actuator Location: Side

  • Mfr # LS-S11S-RR

  • Zoro # G6553662

product price:
$
87.49
/ea

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Rod, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
4A at 400V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LS-S11S-RR
Zoro #
G6553662
UPC #
786685392714
Country of Origin
Germany

Dimensions

Width
1.22"
Height
2.99"
Actuator Length
6 in
Actuator Length - Limit Switch
6.0 in
Depth
1.32"
Body Height - Limit Switch
2.53 in
Body Width - Limit Switch
1.22 in
Body Depth - Limit Switch
1.32 in
Arm Width
0.23 in
Product Height
8.08 in
Product Width
1.81 in
Mounting Hole Diameter
0.16 in
Arm Length - Maximum
6 in
Body Depth
1.32 in
Manufacturer Warranty Length
1 yr
Overall Depth
1.22 in
Body Height
2.53 in
Body Width
1.22 in
Overall Width
1.81 in
Arm Length - Minimum
3 in
Overall Height
8.08 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Rod, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
4A at 400V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
DC Contact Rating
3 A @ 24 V
AC Contact Rating
6 A @ 240 V
Stem Thread - Limit Switch
No Stem
Actuator Location (Limit Switch)
Side
Voltage Rating
400VAC
Mounting Hole - Limit Switch
(2) 0.16 in dia
Basic Actuator Style (Limit Switch)
Rotary
NEMA Rating
3, 3S, 4X, 6P
Operating Temp. Range
-13 Degrees to 158 Degrees F
Mounting Hole Spacing - Limit Switch
0.87 in
Travel
Operating Travel 0.36 in, Total Travel 0.38 in
Amps
4
IP Rating
IP66, IP67
Movement
Horizontal
Boot Sealed Actuator - Limit Switch
No
Limit Switch Style
General Purpose Limit Switch
Actuator Location
Side
Series
LS-Titan
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Contact Form
1NO/1NC
Body Style (Limit Switch)
Miniature
Operating Force
0.2 N-m
Wiring Entry
M20 Thread
Electrical Connection
Screw Terminals
Boot Sealed Actuator (Limit Switch)
No
Standards
RoHS, UL Listed
Actuator Style
Rod
Actuator Style (Limit Switch)
Rotary, Adjustable Rod
Contact Form - Limit Switch
1NC/1NO
Differential Travel
65 Degrees
Arm Material
Polymer
Certification
UL Listed
Body Material
Polyamide
Connection Type
Screw terminal
Weight
.1938 lb
Type
LS-Titan
Switch Type
Side rotary;Rod lever
Maximum DC Current
3A
Operating Temperature - Min
-13 °F
Product Name
Eaton LS-Titan miniature DIN limit switch
Maximum AC Current
6A
Contact Configuration
1 NO-1 NC, snap action, positive opening
Operating Temperature - Max
158 °F
Contact Rating
6A at 240Vac, 3A at 24Vdc
Enclosure Material
Polyamide PA66-GF25
Environmental Rating
IP66, IP67
Includes Actuator
Actuator Included
NEMA Enclosure Rating
3, 3S, 4X, 6P
Number of Mounting Holes
2
Arm Adjustability
Adjustable
Operating Torque - Maximum
1.77 in-lb
Boot Sealed Actuator
No Boot Included
Mounting Style
Surface
Operating Temperature - Maximum
158 Degrees F
Lamp Type
No Lamp Module Included
Directional Movement
CCW/CW
Total Travel
0.38 in
Operating Force - Minimum
1 N
Mounting Hole Horizontal Center to Center Distance
22 mm
Pretravel
43 Degrees
Reset Travel
22 Degrees
Mounting Hole Vertical Center to Center Distance
43 mm
Operating Force - Maximum
8 N
Operating Temperature - Minimum
-13 Degrees F
Body Configuration
Plug-In
Action
Momentary/Momentary
Roller Position
Side

Description

Limit Switch, Actuator Style - Limit Switch Adjustable Rod, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 4A @ 400V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 6 in, Body Height - Limit Switch 2.53 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.32 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 3, 3S, 4X, 6P
