Shop EATON

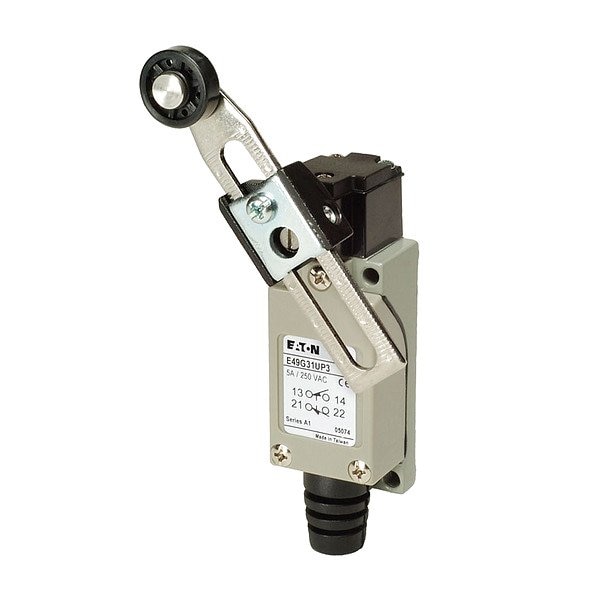

Limit Switch

  • Mfr # E49G31UP3
  • Zoro # G023360409
product price:
$
149.99
/ea
Free Shipping & Returns

Key Features

Body Material
Metal
Electrical Connection
Screw Terminal
Roller Width
0.28 in
IP Rating
IP65
Roller Material
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E49G31UP3
Zoro #
G023360409
UPC #
786685102108
Country of Origin
Taiwan, Province of China

Dimensions

Roller Width
0.28 in
Arm Length - Minimum
1.18 in
Mounting Hole Diameter
4.06 mm
Arm Length - Maximum
2.75 in
Actuator Length
2.75 in
Roller Diameter
0.7 in

Details

Body Material
Metal
Electrical Connection
Screw Terminal
Item
Limit Switch
IP Rating
IP65
Roller Material
Nylon
DC Contact Rating
5 A @ 30 V
Mounting Style
Surface
Actuator Style
Roller-Lever Arm
Mounting Hole Vertical Center to Center Distance
56 mm
Roller Position
Side
Directional Movement
CCW/CW
Body Configuration
Non Plug-In
Arm Adjustability
Adjustable
Mounting Hole Horizontal Center to Center Distance
20 mm
AC Contact Rating
5 A @ 250 V
Action
Momentary/Momentary
Roller Adjustability
Fixed
Lamp Type
No Lamp Module Included
Includes Actuator
Actuator Included
NEMA Enclosure Rating
1, 13, 3, 3S, 4, 4X
Number of Mounting Holes
2
Contact Form
1NO/1NC
Boot Sealed Actuator
Boot Included
Series
E49

Description

Limit Switch, Electrical Connection Screw Terminal, IP Rating IP65
