  15. Limit Switch Head, Rotry Lvr, Side, 1.29 In

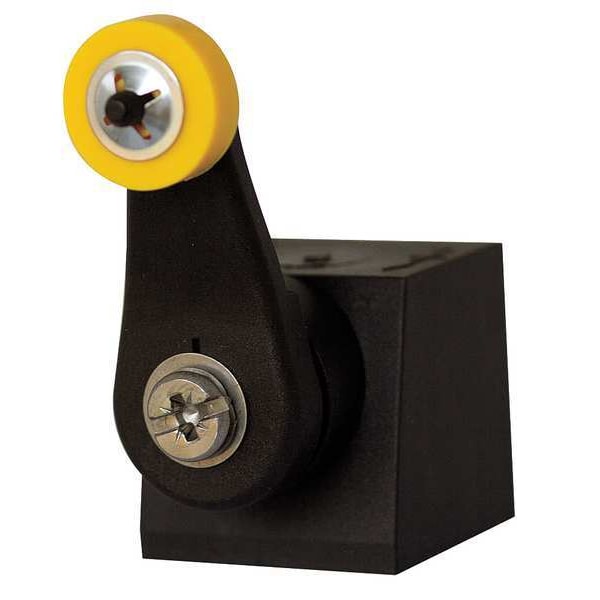

Eaton Limit Switch Head, Rotry Lvr, Side, 1.29 In LS-XRL - main

Limit Switch Head, Rotry Lvr, Side, 1.29 In

  • Mfr # LS-XRL

  • Zoro # G9525747

product price: $25.99
/ea

Key Features

Actuator Style
Roller Lever Plunger
Actuator Location
Side
Actuator Length
1.29 in
For Use With
LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A, Mfr. No. LS-S02
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LS-XRL
Zoro #
G9525747
UPC #
786685393575
Country of Origin
Germany

Dimensions

Actuator Length
1.29 in
Product Width
1.22 in
Product Height
2.36 in
Product Length/Depth
1.82 in
Overall Depth
1.82 in
Manufacturer Warranty Length
1 yr
Arm Length - Minimum
1.06 in
Arm Length - Maximum
1.29 in
Roller Diameter
0.7 in
Overall Height
2.36 in
Roller Width
0.71 in
Overall Width
1.22 in

Details

Item
Limit Switch Head
Actuator Style
Roller Lever Plunger
Actuator Location
Side
For Use With
LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A, Mfr. No. LS-S02
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
Movement
Vertical
Travel
Operating Travel 55 Degrees , Reset Travel 5 Degrees , Total Travel 65 Degrees
Operating Force
8 N
Amps
10
Description/Special Features
Momentary
Operating Temp.
-13 Degrees to 158 Degrees F
IP Rating
IP66, IP67
Voltage Rating
415V AC
Standards
RoHS, UL Listed
Environmental rating
IP66, IP67
Series
LS
Operating temperature - min
-13°F
Operating temperature - max
158°F
Enclosure material
Plastic
Special features
Head only
Type
LS-Titan
Certifications
UL Listed
Operating speed
149.96 cm/s
Actuator
Rotary lever
Product Name
Eaton LS-Titan miniature DIN limit switch
Roller Position
Side
Pretravel
55 Degrees
Directional Movement
CCW/CW
NEMA Enclosure Rating
1, 12, 13, 2, 4, 4X, 6
Compatible with Brand
Eaton
Includes Actuator
Actuator Included
Reset Travel
5 Degrees
Total Travel
65 Degrees
Operating Torque
8.88 in-lb
Differential Travel
65 Degrees
Operating Temperature - Maximum
158 Degrees F
Roller Material
Nylon
Overtravel
55 Degrees
Compatible with Manufacturer Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Roller Adjustability
Fixed
Arm Adjustability
Fixed
Action
Momentary
Compatible with Series
LS-Titan
Arm Material
Metal
Plunger Adjustability
Fixed
Operating Temperature - Minimum
-13 Degrees F
Compatible Manufacturer Part Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Manufacturer Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible with Manufacturer Model No.
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible with Mfr. Model No.
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
For Use with Mfr Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
For Use With Mfr. Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Pump Manufacturer Part Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Mfr. Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A

Description

Limit Switch Head, Actuator Style Roller Lever Plunger, Actuator Location Side, Actuator Length 1.29 in, Contact Form Not Applicable, Amps 10, Voltage Rating 415V AC, Travel Operating Travel 55 Degrees , Reset Travel 5 Degrees , Total Travel 65 Degrees , Movement Vertical, Operating Force 8 N, Operating Temp. -13 Degrees to 158 Degrees F, NEMA Rating 1, 12, 13, 2, 4, 4X, 6, IP Rating IP66, IP67, Standards RoHS, UL Listed
